Pedrollo 6HR - Submersible Pumps AMES Srl

Code 6HR

Key specifications

TipologiaElettropompa
Codice articolo6HR
Caudalhasta 1500 l/min (90 m³/h)
Alturahasta 375 m
Temperatura del l quidohasta +40 °C
Contenido m ximo de arena100 g/m³

See all 14 specifications

Advantages

Pedrollo reliability: recognized brand in the Submersible Pumps sector
Consistent performance: tested for professional use
Compatibility: integrable with the Pedrollo line
AMES Support: pre and post-sales technical consultation

Applications

The Pedrollo 6HR - AMES Srl Submersible Pumps tool is intended for professional use in the following contexts:

Construction sites, infrastructure and plants
Workshops, laboratories and industrial production
Specialized technical maintenance
Operators and professionals in the Submersible Pumps sector

Standards and Compliance

Reference standards: CE marking according to applicable EU directives for the Submersible Pumps sector, compliance with current technical and safety regulations, technical documentation provided by the manufacturer Pedrollo.

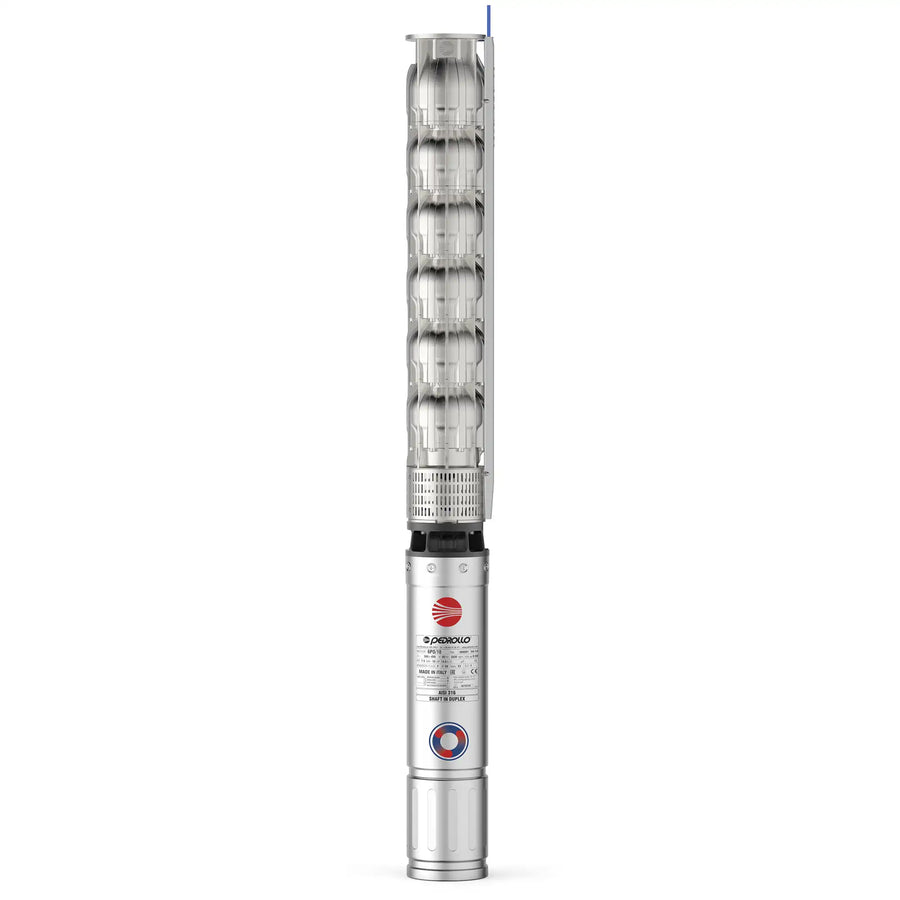

6HR (Pedrollo) — Investment cast stainless steel submersible pumps for 6" wells. Submersible pumps for 6" wells made of heavy-duty investment cast stainless steel. Due to their high efficiency and reliability, they are suitable for various applications such as industrial, municipal and agricultural water needs, for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting, for fire-fighting systems, etc. Construction features Single and twin impeller centrifugals Single impeller centrifugal electric pumps Vertical multi-stage centrifugal electric pumps in stainless steel Electric pump with peripheral impeller Peripheral electric pump with PPS pump body Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy

Technical data

Feature	Value
Flow rate	up to 1500 l/min (90 m³/h)
Head	up to 375 m
Liquid temperature	up to +40 °C
Maximum sand content	100 g/m³
Maximum immersion depth	– 200 m with 6PD motors – 150 m with 6PSR motors
Motor	2 pole
Protection rating	IP 68
Delivery body	AISI 304 investment cast stainless steel
Impellers	AISI 304 investment cast stainless steel
Diffusers	AISI 304 investment cast stainless steel
Shaft	AISI 304 stainless steel
Lantern	AISI 304 investment cast stainless steel

Main features

Construction features
Single and twin impeller centrifugals
Single impeller centrifugal electric pumps
Vertical multi-stage centrifugal electric pumps in stainless steel
Electric pump with peripheral impeller
Peripheral electric pump with PPS pump body
Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy

Why choose Pedrollo

World leader in pumps: Pedrollo S.p.A., Italian excellence in electric water pumps, recycling and circularity
Complete range: surface, submersible, drainage pumps, pressure booster sets, control panels and accessories
Hydraulic quality: excellent hydraulic characteristics, reliability and compactness for domestic, civil, industrial and agricultural use
Made in Italy: Italian design and production, distribution in over 160 countries

Request a quote from AMES Srl for 6HR: we will contact you with model, hydraulic performance and supply conditions.

Quantity

Products may not be in stock.
Delivery times depend on the manufacturer's speed.

Specifications

Tipologia	Elettropompa
Codice articolo	6HR
Caudal	hasta 1500 l/min (90 m³/h)
Altura	hasta 375 m
Temperatura del l quido	hasta +40 °C
Contenido m ximo de arena	100 g/m³
M xima profundidad de uso	– 200 m con motores 6PD – 150 m con motores 6PSR
Motor	2 polos
Protecci n	IP 68
Cuerpo de impulsi n	Acero inoxidable microfusión AISI 304
Rodete	Acero inoxidable microfusión AISI 304
Difusor	Acero inoxidable microfusión AISI 304
Eje	Acero inoxidable AISI 304
Soporte	Acero inoxidable microfusión AISI 304
