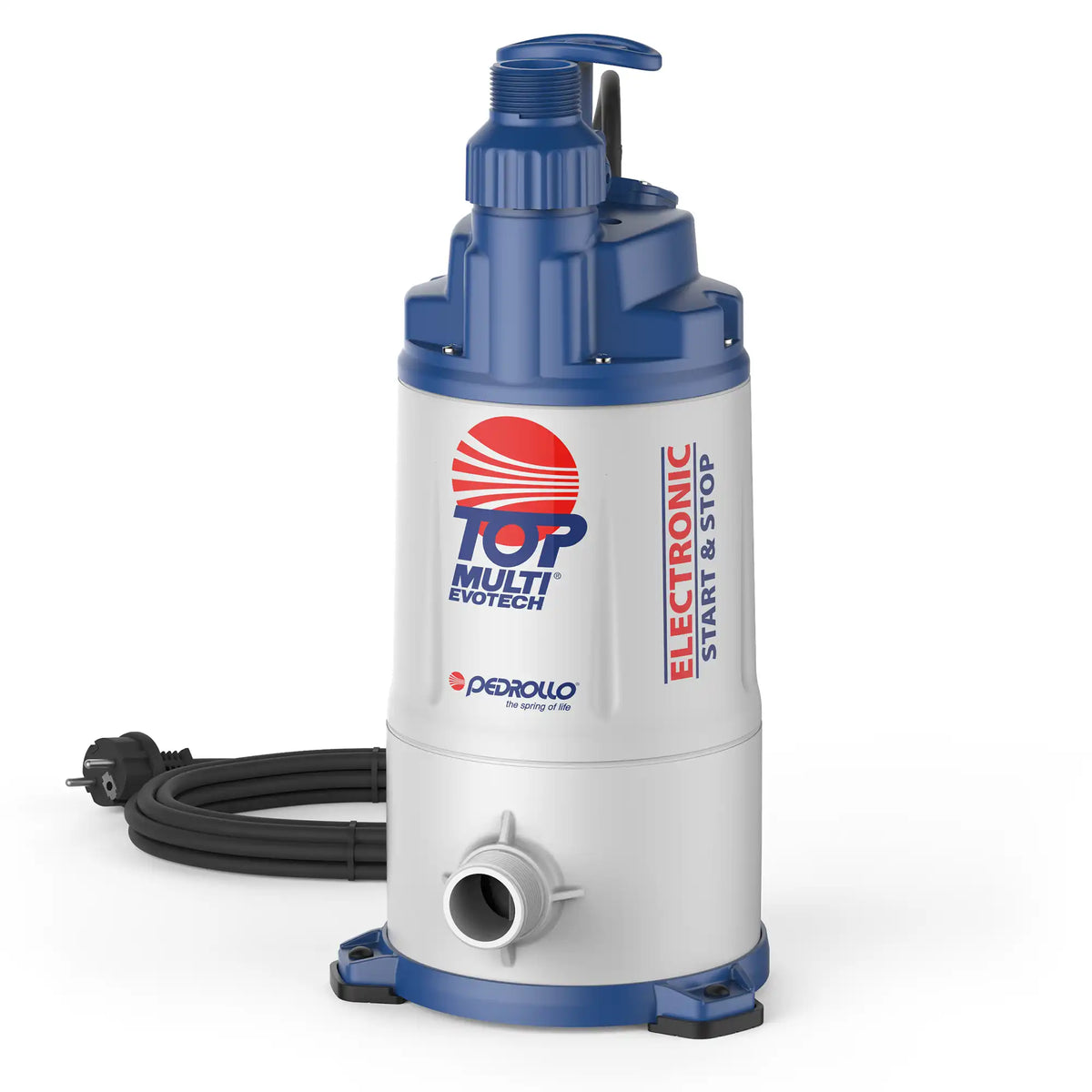

Electric pump TOP Pedrollo
Key features
- CapacityUp to 360 l/min (21.6 m³/h)
- HeightUp to 15.5 m
- Liquid temperatureUp to +40 °C (+90 °C for a maximum intermittent duty of 3 minutes)
- Solids passageUp to Ø 10 mm
- Maximum depth of useUp to 3 m for TOP 1-2-3 – up to 5 m for TOP 4-5
- Min drain levelUp to 14 mm for TOP 1-2-3 – up to 30 mm for TOP 4-5
What it is
Electric pump TOP Pedrollo. Key specifications: capacity Up to 360 l/min (21.6 m³/h), height Up to 15.5 m, liquid temperature Up to +40 °C (+90 °C for a maximum intermittent duty of 3 minutes).
A clean water pump is a surface or submersible electric pump that lifts or pressurises clear water from wells, cisterns and tanks.
What it is for
Used in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.
How to use it
Install surface pumps on a level base close to the draw-off point, with a foot valve on the suction pipe, and fill them with water before first start-up; lower submersible pumps suspended on a rope. Use them only with clean, sand-free water and never let them run dry. Connect them to a circuit protected by an RCD and, in winter, drain outdoor pumps to protect them from frost.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Capacity: Up to 360 l/min (21.6 m³/h)
- Height: Up to 15.5 m
- Liquid temperature: Up to +40 °C (+90 °C for a maximum intermittent duty of 3 minutes)
- Solids passage: Up to Ø 10 mm
- Maximum depth of use: Up to 3 m for TOP 1-2-3 – up to 5 m for TOP 4-5
- Min drain level: Up to 14 mm for TOP 1-2-3 – up to 30 mm for TOP 4-5
- Motor: 2 polo shirts
- Protection: IP68
- Pump body: Technopolymer
- Impeller: Noryl™
- Motor casing: AISI 304 stainless steel – AISI 316L stainless steel (for TOP-LA)
- Shaft: AISI 431 stainless steel – AISI 316L stainless steel (for TOP-LA)
Who it is for
Designed for plumbers, agricultural workers and heating and plumbing engineers.
Related products
- Electric pump TURBO Pedrollo
- Electric pump SPRINKLER Pedrollo
- Premium hose — from the category Water Hoses and Layflat Hoses
- Double nipples, art. 280 — from the category Galvanised Pipe Fittings
- Steel outdoor storage units and cabinets Sall — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 12
| Capacity | Up to 360 l/min (21.6 m³/h) |
|---|---|
| Height | Up to 15.5 m |
| Liquid temperature | Up to +40 °C (+90 °C for a maximum intermittent duty of 3 minutes) |
| Solids passage | Up to Ø 10 mm |
| Maximum depth of use | Up to 3 m for TOP 1-2-3 – up to 5 m for TOP 4-5 |
| Min drain level | Up to 14 mm for TOP 1-2-3 – up to 30 mm for TOP 4-5 |
| Motor | 2 polo shirts |
| Protection | IP68 |
| Pump body | Technopolymer |
| Impeller | Noryl™ |
| Motor casing | AISI 304 stainless steel – AISI 316L stainless steel (for TOP-LA) |
| Shaft | AISI 431 stainless steel – AISI 316L stainless steel (for TOP-LA) |
