Bendable type A hook CSC Edilizia 395
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- Length (mm)555
What it is

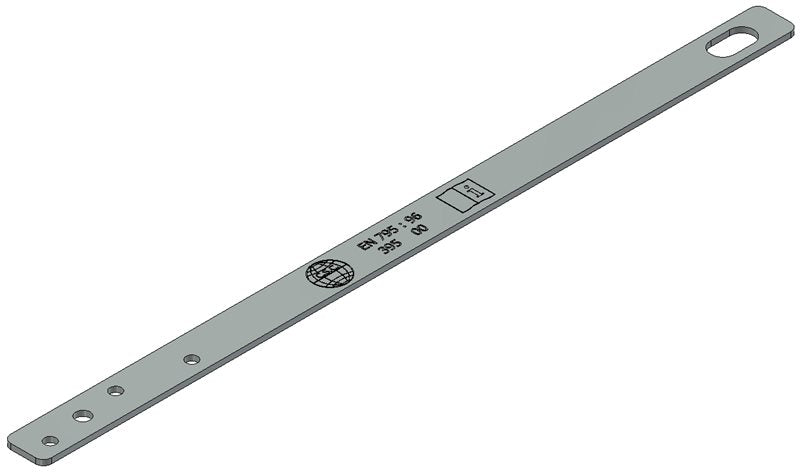

The CSC Edilizia 395 type A formable hook is an anchoring component for fall protection systems, characterised by the ability to be shaped to fit the profile of the structure it hooks onto. Made of S235JR (Fe 360 B) steel with a length of 555 mm, it offers versatility of installation while retaining the characteristics of the structural material; manufacturing complies with the UNI-ISO 2768 general tolerances.
An under-tile hook is a metal anchor fixed to the roof structure beneath the roof covering, for connecting lifelines and fall arrest devices.
What it is for
Used as an anchor point in fall protection systems and for roof maintenance.
How to use it
Remove the tiles at the designated point, shape or position the hook on the load-bearing structure and fix it with the anchors or screws specified by the manufacturer. Relay the covering, leaving only the attachment eye protruding. Installation and fixing must follow the design and certification, and the anchor must be inspected periodically.
Where it is used
- Residential construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Length (mm): 555
Who it is for
Designed for formwork carpenters, waterproofing specialists and health and safety officers.
Related products
- Type A uni-directional stainless steel hook, L. 715 (with rivets), CSC Edilizia 800-04C
- Bendable type A hook CSC Edilizia 394A
- Cast-in posts, small, type A-C, H35, CSC Edilizia 705-35C — from the category Lifeline Accessories
- Large D-ring attachment PCO for harness Astro Petzl — from the category Fall Arrest Harnesses
- Work-positioning lanyard FOR83 Irudek — from the category Lanyards and Energy Absorbers
- Browse the whole category: Certified Under-Tile Roof Hooks for Lifelines
Before you order
In your request, please state the length and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Variant
Quantity
Specifications 3
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Length (mm) | 555 |
