Hopper support frame CSC Edilizia 40
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- Weight (kg)7,80
- TreatmentGalvanised
What it is

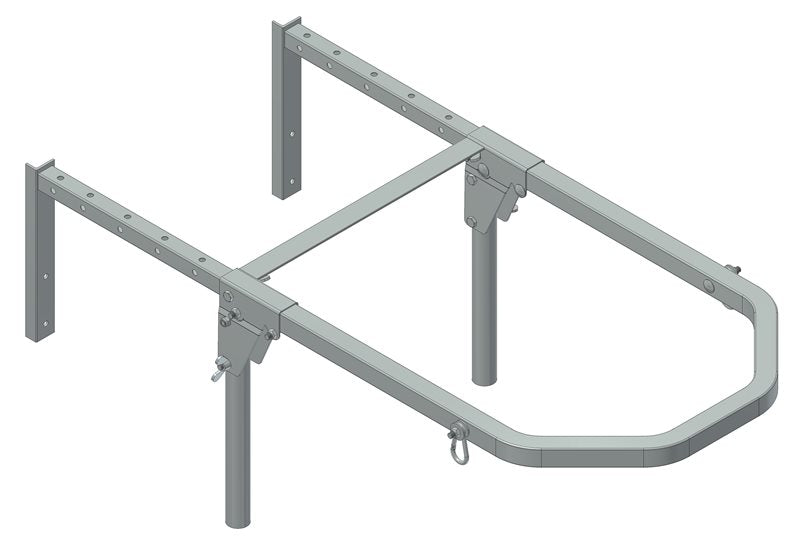

The CSC Edilizia 40 hopper support frame is a support structure designed to hold and support the hopper on site, making it easier to load and handle bulk materials. It is made of S235JR (Fe 360 B) structural steel with a galvanised finish against corrosion and weighs 7.80 kg, with machining in accordance with the general tolerances of the UNI-ISO 2768 standard.
The frame or support for the debris chute is the metal structure from which the hopper or the first section of the chute is hung.
What it is for
Used for setting up the construction site, for demolishing masonry and concrete structures and for managing and collecting production and job-site waste.
How to use it
Fix it to the floor slab, scaffold, parapet or window sill with the specified fixing systems, checking that it can bear the weight of the entire loaded chute. At every shift check tightness and welds, and replace anything that is deformed. Do not modify it and do not load it beyond the stated limit.
Where it is used
- Commercial construction
- Residential construction
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Weight (kg): 7,80
- Treatment: Galvanised
Who it is for
Designed for site managers, formwork carpenters, building contractors and construction workers.
Related products
- Plastic hopper CSC Edilizia
- Hopper support frame CSC Edilizia
- Storage container for metal boards Mafi — from the category Galvanised Fixed Scaffolding
- Grey eyeleted tarpaulin Verdelook — from the category Tear-Resistant Eyeleted Tarpaulins
- Heavy-duty modular barriers Sisas — from the category Temporary Plastic and Steel Barriers
- Browse the whole category: Rubble Chutes and Accessories
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 4
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Weight (kg) | 7,80 |
| Treatment | Galvanised |
