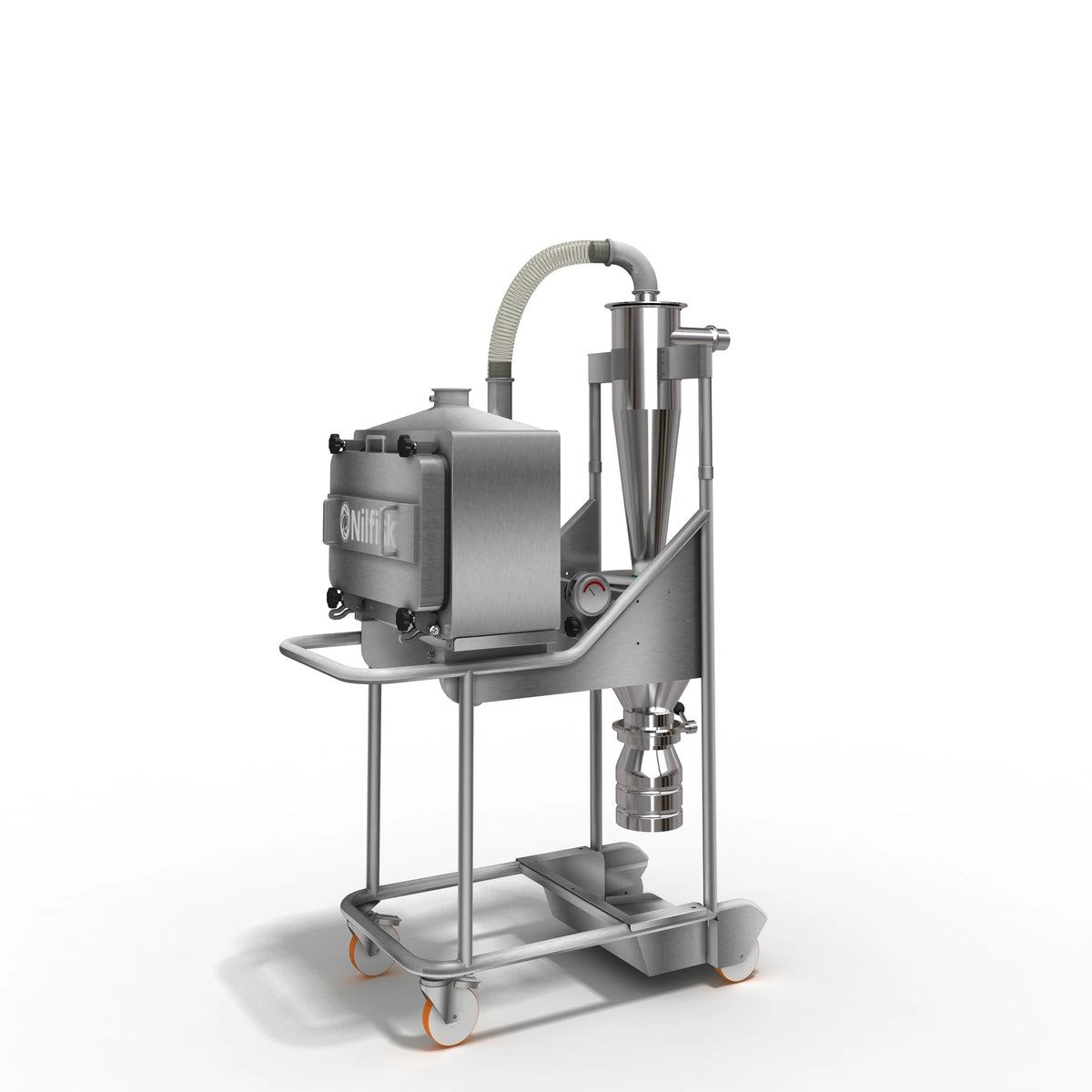

Dust containment system DCU112 Nilfisk

What it is

Dust containment system DCU112 Nilfisk. Key specifications: max air flow rate (m³/h l/min) 650 - 10833, maximum vacuum (kPa mbar) 25 - 250, cyclone pre separation unit efficiency (%) >96% (with placebo powder 0.97 kg/dm³).

Special industrial vacuums are machines for specific applications: class M or H hazardous dusts, potentially explosive atmospheres, the food industry, and battery or compressed-air operation.

What it is for

Used for dust extraction at source, keeping both the workpiece and the workshop air clean, for work in dusty environments and for industrial cleaning of production areas, machinery and plant.

How to use it

Choose the version certified for the substance and the working environment, and never substitute an ordinary vacuum. Before start-up, check filters and seals, and during use activate the filter cleaning system provided; in potentially explosive atmospheres, use only antistatic accessories and an earth connection. Empty hazardous dusts into sealed bags while wearing respiratory protection.

Where it is used

• Food industry
• Chemical industry

Technical data

• Max air flow rate (m³/h l/min): 650 - 10833
• Maximum vacuum (kPa mbar): 25 - 250
• Cyclone pre separation unit efficiency (%): >96% (with placebo powder 0.97 kg/dm³)
• Waste container capacity (L): 30
• HEPA filter stage(s): 1
• HEPA H14 filter area (cm²): 100000
• HEPA H14 filter replacement system: BagIn BagOut
• Filtering efficiency (%): 99.995%
• OEB level production stage: OEB5
• OEB level maintenance stage: OEB4
• Dimensions (L×P×H mm): 1454 × 710 × 2232
• HEPA filter stages: 1

Who it is for

Designed for industrial maintenance technicians and industrial cleaners.
