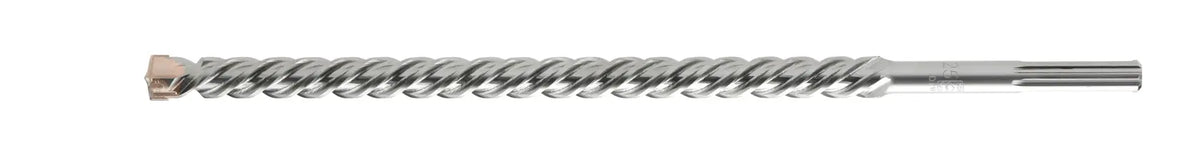

SDS-Max hammer drill bit DeWalt DT9417-QZ

What it is

The DeWalt DT9417-QZ SDS-Max hammer drill bit is made for drilling masonry, with a diameter of 20 mm, a working length of 400 mm and an overall length of 57 cm. The carbide-tipped head and four-cutter geometry ensure accurate centring and wear resistance even in deep holes, while the SDS-Max shank optimises the transmission of percussion. It weighs 0.747 kg and is supplied in a single pack with a tag.

An SDS-Max bit is a carbide-tipped bit for rotary hammers with an SDS-Max chuck, for large-diameter, deep holes in concrete and masonry.

What it is for

Used for drilling reinforced concrete, in hammer or rotary hammer mode and for drilling solid and hollow masonry, clay brick and blocks.

How to use it

Clean and lightly grease the shank, insert it into the chuck until it locks and select hammer drilling. Drill with the hammer held in line with the hole, letting the machine's weight do the work without pushing, and withdraw the bit frequently to clear the dust. If you hit a reinforcing bar, stop and move the hole; do not cool a hot bit in water.

Where it is used

• Residential construction
• Building services
• Renovation

Technical data

• Diameter (mm): 20
• Head type: Carbide tooth
• Pgm: Sì
• Width (cm): 3
• Height (cm): 3
• Working length (mm): 400
• Weight (kg): 0,747
• Masonry drilling type: SDS
• Application material: Masonry
• Shank connection: SDS MAX
• Length (cm): 57
• Pack: Label

Who it is for

Designed for electricians, plumbers, bricklayers and construction workers.

Related products

• SDS-Max hammer drill bit DeWalt DT9418-QZ
• SDS-Max hammer drill bit DeWalt DT9416-QZ
• Combination hammer SDS-Max 48mm XR FlexVolt 54V with 2 batteries 9Ah DeWalt DCH735X2-QW — from the category Combination Hammers
• SDS-Plus rotary hammer 24 mm 18V brushless DeWalt — from the category Rotary Hammers
• Vinylester Resin Anchor AC100-PRO, DeWalt — from the category Chemical Anchors
• Browse the whole category: SDS Max Drill Bits

Before you order

In your request, please state the length, the diameter, the connection type and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
