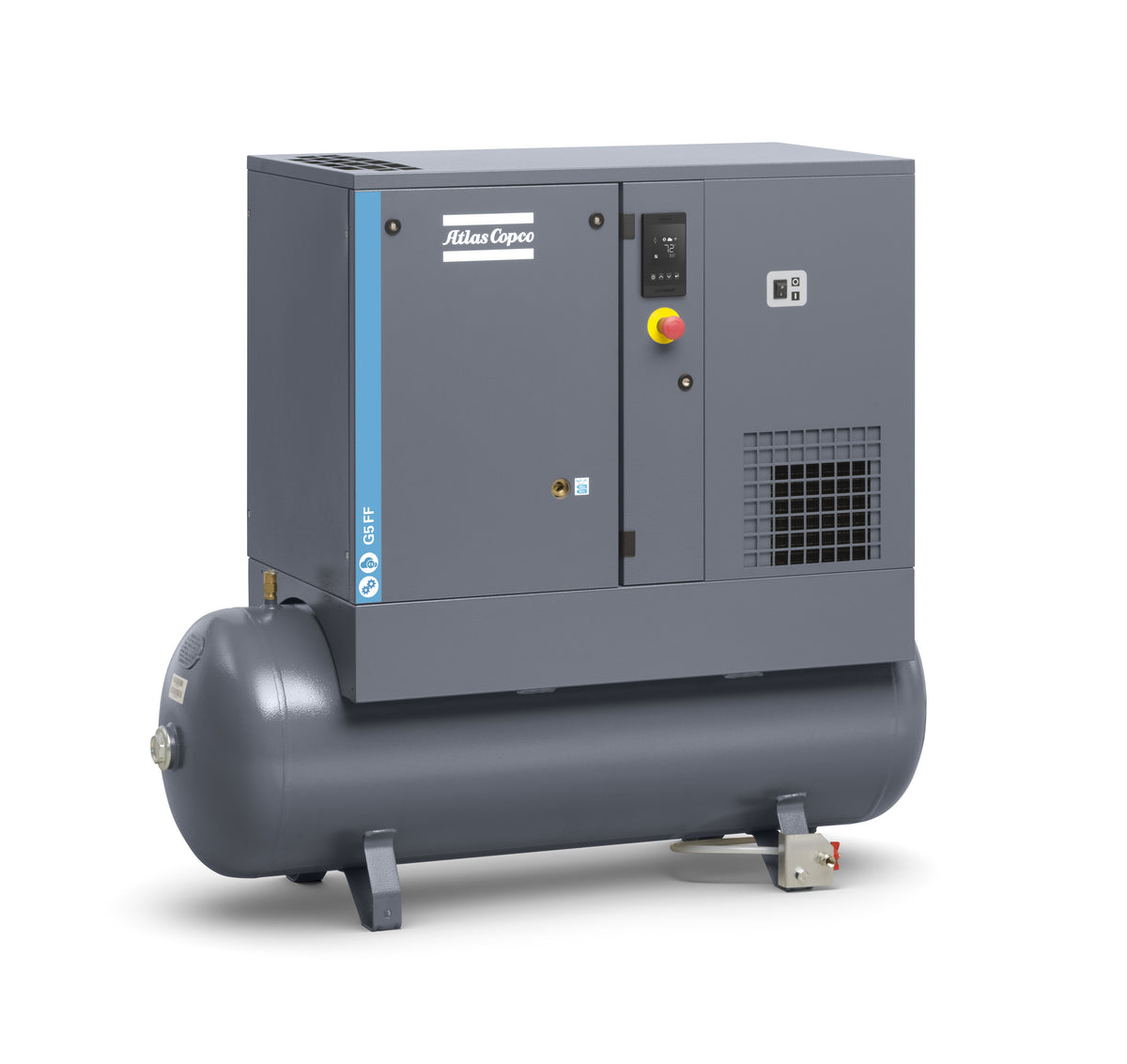

Lubricated screw compressor 5,5 kW 10 bar G5FF-10 230/50 TM meaa YD Abac

What it is

Lubricated screw compressor 5,5 kW 10 bar G5FF-10 230/50 TM meaa YD Abac. Key specifications: cooling Air-operated, integrated dryer Sì, stages 3.

A screw compressor produces compressed air continuously with two helical rotors and supplies workshop and production systems with high, steady air demand.

What it is for

Used in compressed air systems, from generation in the compressor room to distribution on the shop floor.

How to use it

Install it in a ventilated plant room on a level floor, leaving clearance all round for cooling and maintenance. Connect it to the air network via a receiver, refrigerated dryer and filters, and set the pressure and operating parameters on the controller. Replace the oil, separator and filters at the hours specified by the manufacturer, preferably using an authorised technician.

Where it is used

• Industrial plant engineering
• Food industry
• Chemical industry
• Mechanical engineering industry

Technical data

• Cooling: Air-operated
• Integrated dryer: Sì
• Stages: 3
• Adjustment: Basic control
• Starting: Star/delta (Y/Δ)
• Version: On the tank
• Operating pressure (bar): 10
• Length (mm): 1430
• Engine power: 5,5
• Oil capacity: 3,2

Who it is for

Designed for industrial maintenance technicians.

Related products

• Lubricated screw compressor 5,5 kW 10 bar G5FF-10 400/50 TM MEAA YD Abac
• Lubricated screw compressor 5,5 bar GA200A2-A-P-5.5BAR-50 Abac
• Refrigerated dryer, 40 L, 20 bar, FD40-20 230/50/1 Abac — from the category Refrigerated Compressed Air Dryers
• Air tank 270 litres Abac — from the category Compressed Air Receivers
• Compressed air filter FG 42 Abac — from the category FRL Air Treatment Units
• Browse the whole category: Screw Compressors

Before you order

In your request, please state the length, the power rating and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
