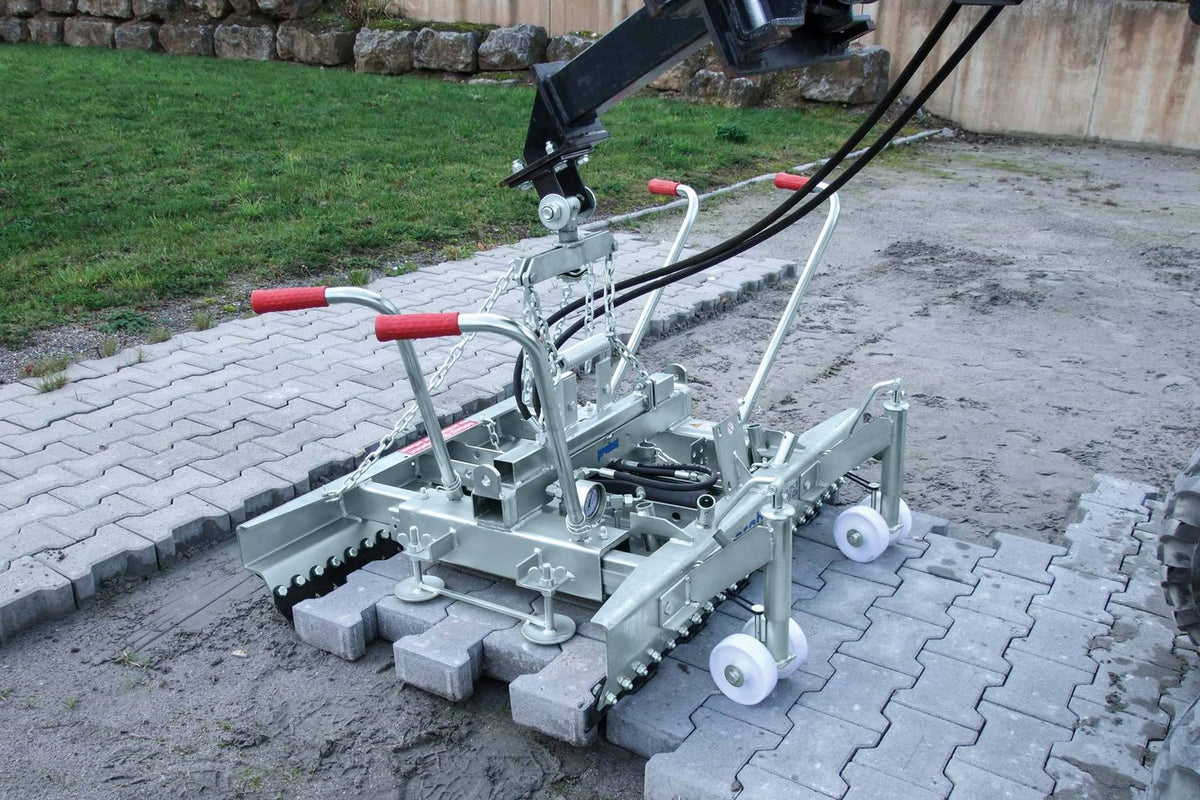

Hydraulic laying clamp HVZ-LIGHT Probst

What it is

Hydraulic laying clamp HVZ-LIGHT Probst. Key specifications: model HVZ-LIGHT, hydraulic connection pressure (bar) 160-320, hydraulic flow rate (l/min) 15-75.

Paving and laying equipment covers tools and spare parts for spreading bedding layers, levelling and laying floors, paving blocks and precast units, from screeding systems to laying clamps.

What it is for

Used for floor laying, from the screed to the finish, for laying tiles and slabs, from spreading the adhesive to grouting and for installing wall tiling and cladding.

How to use it

Set screeding systems to the required level on the screed rails and draw them across the sand or grit bed to obtain an even surface before laying. Attach laying clamps and devices to the carrier and use them within the stated capacity. Fit spare parts and accessories only to the model they are designed for.

Where it is used

• Residential construction
• Renovation

Technical data

• Model: HVZ-LIGHT
• Hydraulic connection pressure (bar): 160-320
• Hydraulic flow rate (l/min): 15-75
• Max hydraulic back pressure (bar): 20
• Main jaw opening (mm): 570-1240
• Stone/element height (mm): 50-160
• Internal height (mm): 110
• Clamp length (mm): 1200
• Capacity (kg): 400
• Weight (kg): 159
• Min weight of carrier machine (kg): 2000
• Type: hydraulic installation clamp without side clamping

Who it is for

Designed for tilers and floor layers.
