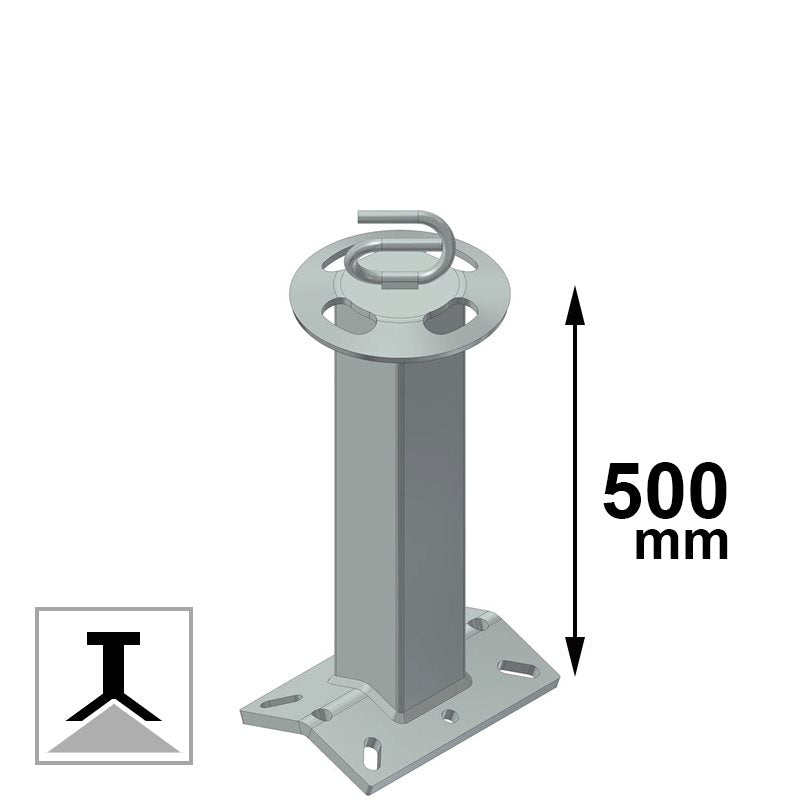

Double-tilt prop head type A–C CSC Edilizia 406-50
Key features
- MaterialS235JR (Fe 360 B)
- RegulationsUNI-ISO 2768
- DimensionsNo. 4 holes Ø18 n; no. 4 slots 18x45 n
- Weight (kg)16,70
- Hole diameter (mm)18
- Slots18x45 mm
What it is
The CSC Edilizia 406-50 double-pitch base post is a structural support for lifelines and fall arrest systems intended for roofs with a double slope. Built from S235JR (Fe 360 B) steel and weighing 16.70 kg, it ensures a sturdy, stable anchor point at ridges and hips. Drilling includes Ø18 mm holes and 18x45 mm slots for fixing and connecting the components, with tolerances in accordance with UNI-ISO 2768.
Rigid posts and anchor posts are steel anchors fixed to the roof structure, to which lifelines and fall arrest devices are connected.
What it is for
Used as an anchor point in fall protection systems and for roof maintenance.
How to use it
The installation point and type of fixing are determined at design stage, according to the roof covering and load-bearing structure. The installer fixes the base and post with the specified anchors, restores the waterproofing and connects the cable or collars. After commissioning, complete the documentation and inspect the system periodically as specified by the manufacturer.
Where it is used
- Residential construction
- Workplace safety and PPE
Technical data
- Material: S235JR (Fe 360 B)
- Regulations: UNI-ISO 2768
- Dimensions: No. 4 holes Ø18 n; no. 4 slots 18x45 n
- Weight (kg): 16,70
- Hole diameter (mm): 18
- Slots: 18x45 mm
Who it is for
Designed for formwork carpenters and health and safety officers.
Related products
- Double-tilt prop head type A–C CSC Edilizia 406-75
- Double-tilt prop head type A–C CSC Edilizia 406-35
- Counter-plate for small-base posts CSC Edilizia 707 — from the category Lifeline Accessories
- Clamps CSC Edilizia 434B-434C — from the category Galvanised or Stainless Steel Cables and Wire Rope Kits
- Attachment bridge for tree care harness Sequoia Petzl — from the category Fall Arrest Harnesses
- Browse the whole category: Rigid Anchor Posts and Poles
Before you order
In your request, please state the diameter and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 6
| Material | S235JR (Fe 360 B) |
|---|---|
| Regulations | UNI-ISO 2768 |
| Dimensions | No. 4 holes Ø18 n; no. 4 slots 18x45 n |
| Weight (kg) | 16,70 |
| Hole diameter (mm) | 18 |
| Slots | 18x45 mm |
