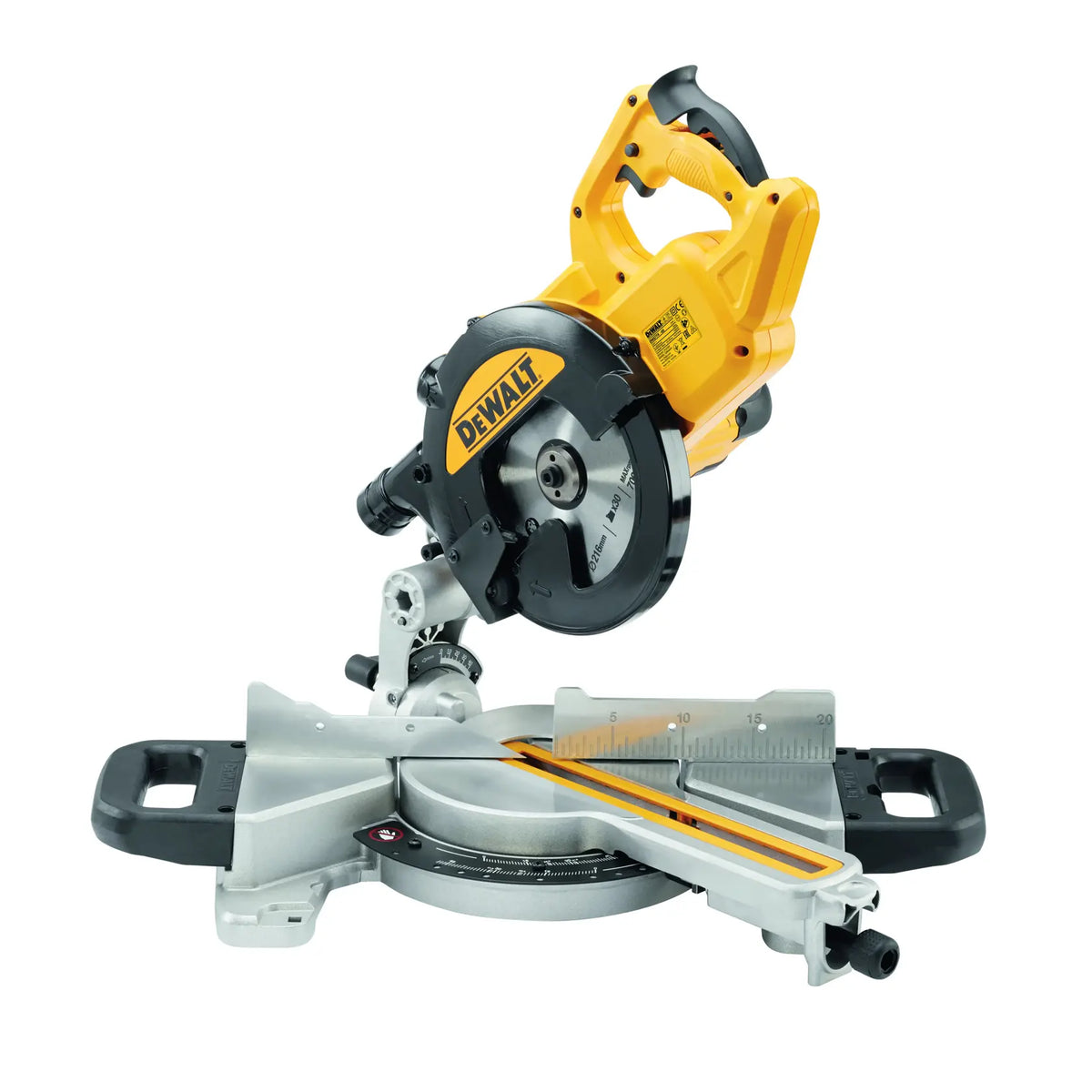

Sliding compound mitre saw, 216 mm, 1400W, with XPS, DeWalt DWS774-QS

What it is

Sliding compound mitre saw, 216 mm, 1400W, with XPS, DeWalt DWS774-QS. Key specifications: blade bore (mm) 30, blade speed (rpm) 4600, max cutting capacity 45°/45° 170 x 48 mm.

A mitre saw is a base-mounted saw with a circular blade that lowers onto the workpiece for straight and angled cuts; there are sliding models for wood and cut-off saws for metal.

What it is for

Used in carpentry work, for woodworking in the joinery shop and for cutting solid wood, panels and battens, on the bench or on site.

How to use it

Secure the machine to the bench or stand and fit the blade suited to the material, with the arrow in the direction of rotation. Clamp the workpiece against the fence, start the saw and lower the blade only at full speed, guiding it without forcing. Wear safety glasses and hearing protection, and wait for the blade to stop before raising it.

Where it is used

• Residential construction
• Renovation

Technical data

• Blade bore (mm): 30
• Blade speed (rpm): 4600
• Max cutting capacity 45°/45°: 170 x 48 mm
• Max cutting depth: 70 x 20 mm
• Saw blade thickness (mm): 2,6
• Max cutting capacity 90°/90°: 250 x 60 mm
• Width (mm): 425
• No load speed (rpm): 4600
• Max cutting capacity 45°/90°: 170 x 60 mm
• Height (mm): 355
• Weight (kg): 11,5
• Blade diameter (mm): 216
• Max cutting capacity 90°/45°: 250 x 48 mm
• Power supply: Wire type

Who it is for

Designed for formwork carpenters and joiners.
