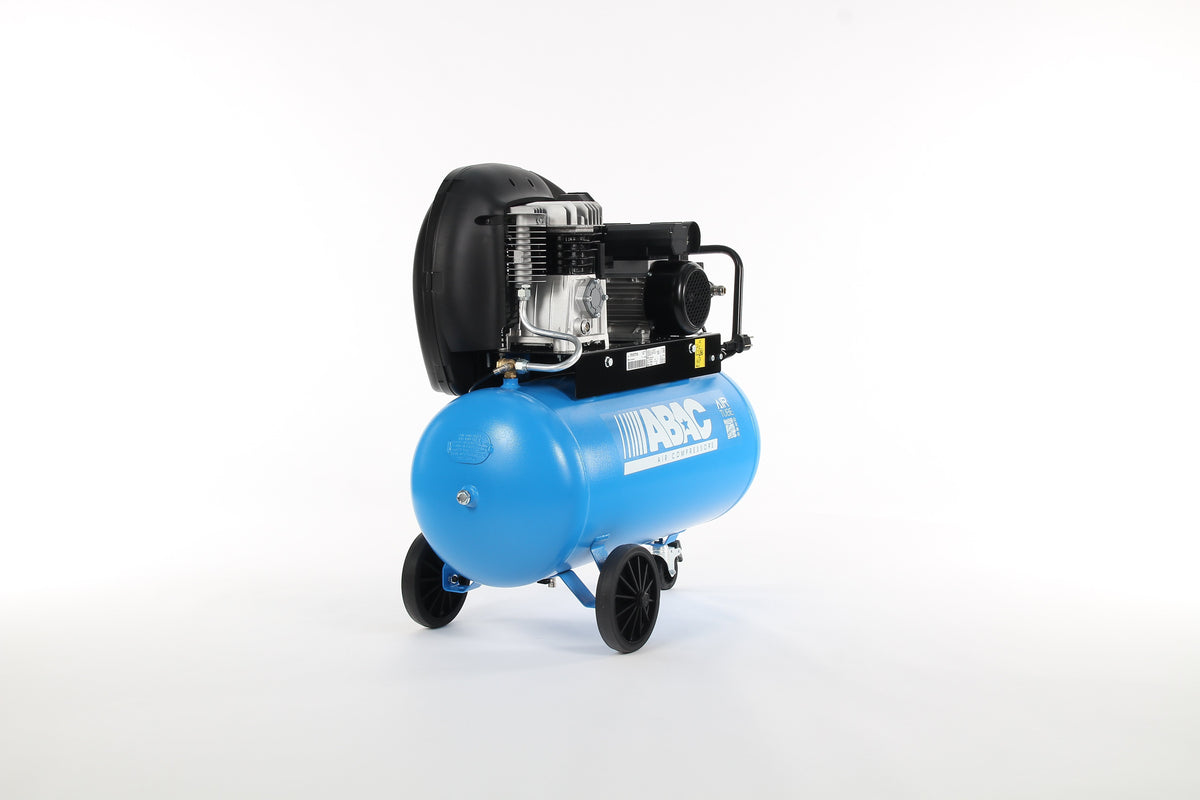

Extensive A29B CT2 - 2Hp, 10bar, 90l tank - 400V/50Hz/3-phase Abac

What it is

Extensive A29B CT2 - 2Hp, 10bar, 90l tank - 400V/50Hz/3-phase Abac. Key specifications: weight (kg) 52, dimensions (L×P×H mm) 1050 × 430 × 900, max pressure (bar) 10.

A piston compressor produces compressed air with one or more cylinders and stores it in a receiver, to supply air tools, spray guns and tyre inflation.

What it is for

Used to supply air tools, from the compressor to the point of use and in compressed air systems, from generation in the compressor room to distribution on the shop floor.

How to use it

Place it on a stable, well-ventilated surface, outdoors if it has a combustion engine, and connect it to a suitable socket or refuel it. On lubricated models, check the oil level before starting, then set the regulator to the pressure required by the tool. Drain condensate from the receiver regularly and clean or replace the air filters as specified in the manual.

Where it is used

• Industrial plant engineering
• Food industry
• Mechanical engineering industry

Technical data

• Weight (kg): 52
• Dimensions (L×P×H mm): 1050 × 430 × 900
• Max pressure (bar): 10
• Tank capacity (L): 90
• Air flow rate (l/min): 255
• Engine power: 2
• Air tank: Capacity up to 270 l
• Power range: From 2 to 5.5 hp
• Technology: Single- and two-stage pumps with aftercooler
• Power supply: 230/400V - 1 or 3 phase - 50/60 Hz
• Air outlet: Reliable pressure switch with single-outlet reducer

Who it is for

Designed for industrial maintenance technicians.

Related products

• Extensive A29B CT3 - 3Hp, 10bar, 150l tank - 400V/50Hz/3-phase Abac
• Extensive A29B CM3 - 3Hp, 10bar, 200l tank - 230V/50Hz/1-phase Abac
• Hose reel kit, with 10 m hose and quick coupling, Abac — from the category Compressed Air Accessories and Tools
• Compressed air filter UD185+ H20 (G1 1/2) Abac — from the category FRL Air Treatment Units
• Vertical oxygen O2 tank 270 L Abac — from the category Compressed Air Receivers
• Browse the whole category: Piston Compressors

Before you order

In your request, please state the power rating, the rated load or flow rate and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
