Cross table Fervi T018/330
Also known as: compound table, cross slide table, XY table
Key features
- Height (mm)82
- Groove (mm)8
- Slot centre distance (mm)36
- Movements190 x 65 mm
- Overall dimensions (mm)395 × 210
- Weight (kg)2,5
What it is

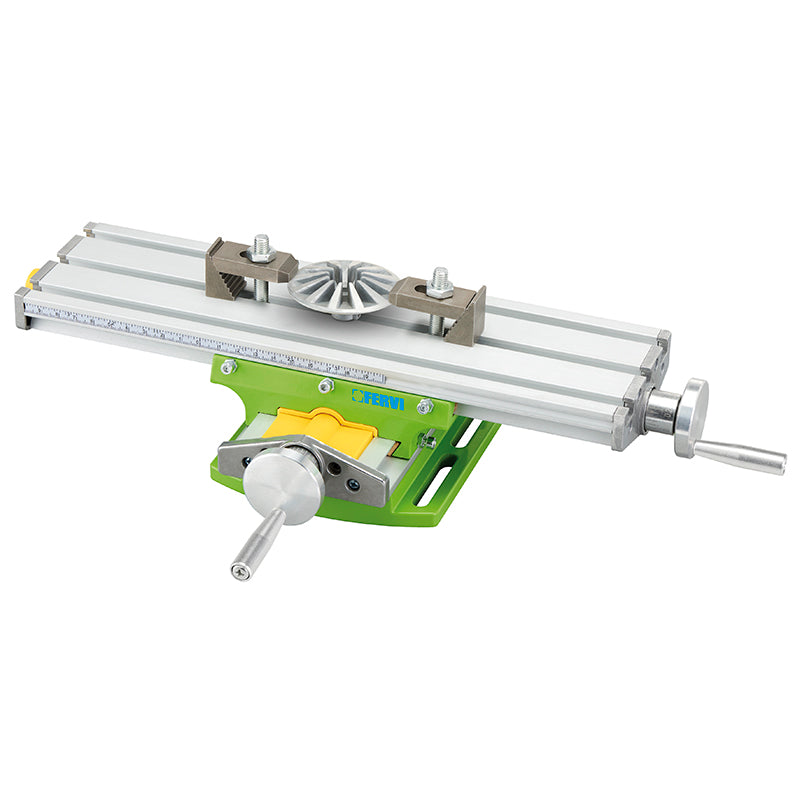

Cross slide table Fervi T018/330 is a compact, lightweight machine tool accessory, ideal for precise positioning of small workpieces. It has an 8 mm slot with a slot centre distance of 36 mm, a height of 82 mm, travel of 190 x 65 mm and overall dimensions of 395 x 210 mm, with a graduation of 0.05 mm. The net weight of just 2.5 kg makes it particularly easy to handle.
The cross slide table is a table with two perpendicular slides, moved by graduated handwheels, fitted on a pillar drill or milling machine to move the workpiece precisely in two directions.
What it is for
Used for clamping workpieces, for drilling steel, stainless steel and aluminium, on a pillar drill or with a hand-held drill and for milling faces, shoulders and slots on machine tools.
How to use it
Fix the table to the machine bed and clamp the workpiece on the table with a vice or clamps. Bring the workpiece to the working point with the handwheels, reading the dimensions on the graduations. Lock the slides that are not needed and keep the ways clean and lubricated.
Where it is used
- Mechanical engineering industry
- Mechanical workshops
Technical data
- Height (mm): 82
- Groove (mm): 8
- Slot centre distance (mm): 36
- Movements: 190 x 65 mm
- Overall dimensions (mm): 395 × 210
- Weight (kg): 2,5
- Packaging dimensions (mm): 400 × 240 × 120
- Gross weight (kg): 2,63
Who it is for
Designed for metal fabricators and mechanics.
Related products
- Cross table Fervi T018/350
- Cross table Fervi T015/E
- 2-flute finishing face mill, Fervi F005/12 — from the category Turning, Milling and Threading Tools
- Steel bench vice Fervi 0591/100 — from the category Vices and Clamps
- Safety glasses Peak OTG Portwest PS24 — from the category Safety Glasses, Goggles and Face Shields
- Browse the whole category: Workshop Bench Machines and Tools
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 9
| Height (mm) | 82 |
|---|---|
| Groove (mm) | 8 |
| Slot centre distance (mm) | 36 |
| Movements | 190 x 65 mm |
| Overall dimensions (mm) | 395 × 210 |
| Weight (kg) | 2,5 |
| Packaging dimensions (mm) | 400 × 240 × 120 |
| Gross weight (kg) | 2,63 |
| EAN | 8012667361105 |
Compare with similar models
Technical data declared by the manufacturers. An empty cell means the figure is not declared.
| Feature |
This model
Cross table Fervi T018/330
|
Cross table Fervi T018/350
|
Cross table Fervi T008
|
Cross table Fervi T015
|
|---|---|---|---|---|
| Brand | Fervi | Fervi | Fervi | Fervi |
| Height | 82 mm | 120 mm | 130 mm | 100 mm |
| Groove | 8 mm | 8 mm | 16 mm | 10 mm |
| Slot centre distance | 36 mm | 36 mm | 75 mm | — |
| Movements | 190 x 65 mm | 177 x 50 mm | 120 x 325 mm | 50 x 80 mm |
| Overall dimensions | 395 × 210 mm | 415 × 255 mm | — | — |
| Weight | 2,5 kg | 6 kg | 23 kg | 10 kg |
