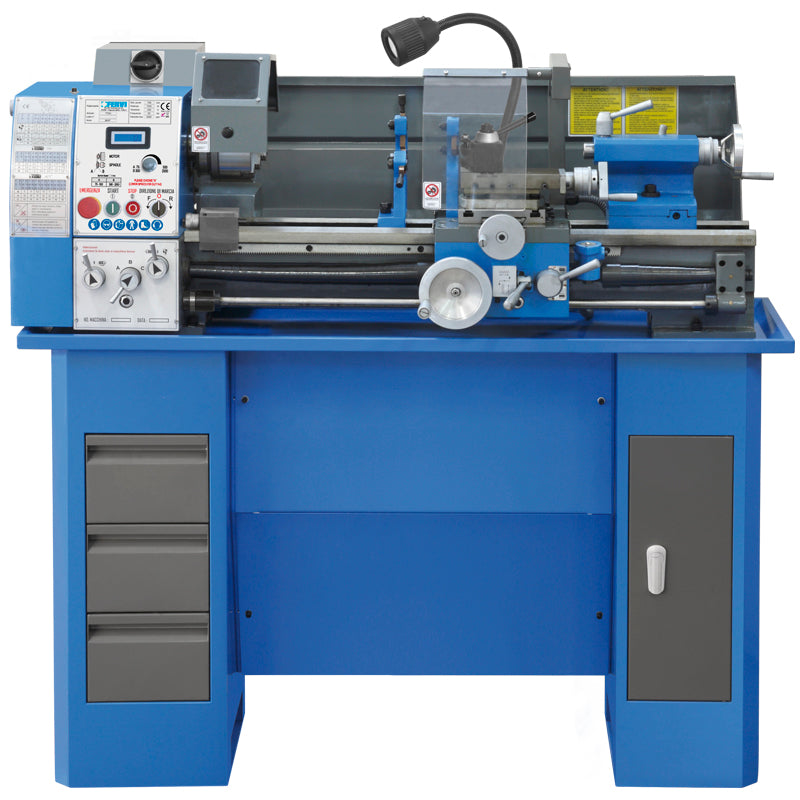

Centre lathe with inverter Fervi T750I

What it is

Centre lathe with inverter Fervi T750I. Key specifications: tip height (mm) 145, max diameter over bed (mm) 290, max diameter over carriage (mm) 175.

The centre lathe is a machine tool that rotates a metal workpiece held in the chuck and machines it with a fixed tool mounted on a carriage, for facing, turning and threading.

What it is for

Used in workshop machining of steel, aluminium and alloy parts, in metalworking and for turning metal parts, both roughing and finishing.

How to use it

Fix it to the bench, clamp the workpiece and tool and set the speed and feed suited to the material. Start the machine and bring the tool up with the handwheels, taking small cuts. Before starting, remove the chuck key, wear safety glasses and use guards, and clear the swarf with a brush, with the machine stopped, never with the hands.

Where it is used

• Mechanical engineering industry
• Mechanical workshops

Technical data

• Tip height (mm): 145
• Max diameter over bed (mm): 290
• Max diameter over carriage (mm): 175
• Tool height (mm): 16
• Distance between centres (mm): 750
• Bar capacity (mm): 38
• Chuck connection: Camlock D1-4
• Bar passage taper (cm): 5
• Variable spindle speed: 75 ÷ 500 | 300 ÷ 2000 rpm
• Longitudinal feed rates: 0.07 – 1.0 mm/rev
• Transverse feed rates: 0.0017 – 0.25 mm/rev
• Metric threads: (18) 0,2 ÷ 3,5 mm
• Threads in inches: (21) 8 – 56 TPI
• Tailstock taper (cm): 3

Who it is for

Designed for metal fabricators and mechanics.
