MakitaCircular Saw Blade, Specialized T.C.T, 190x30mm, 12T Maki...Code B-13683
Cut wood, boards, metals and plastics when fitted to circular saws and mitre saws.
Accessories collection:Circular Saw Blades for Wood, Laminates, MDF and ChipboardCircular Saw Blades for Steel and Solid MetalPower Tool Batteries and Chargers
All Makita products

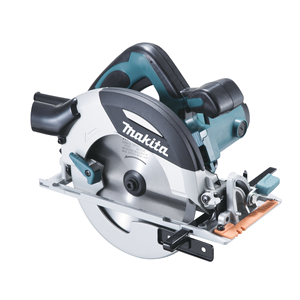

Circular saw Makita HS7101JX
Key features
- Absorbed power (W)1400
- No load speed (rpm)5500
- Maximum cutting depth at 90° (mm)67
- Maximum cutting depth at 45° (mm)48,5
- Maximum cutting depth at 50° (mm)43,5
- Blade diameter (mm)190
What it is
Circular saw Makita HS7101JX. Key specifications: absorbed power (W) 1400, no load speed (rpm) 5500, maximum cutting depth at 90° (mm) 67.
A circular saw is a corded or cordless power tool with a rotating blade for straight cuts in wood and panels; this category includes plunge saws, band saws and table saws.
What it is for
Used for woodworking in the joinery shop and for cutting solid wood, panels and battens, on the bench or on site.
How to use it
Fit the blade suited to the material, observing the direction of rotation, set the depth just beyond the material thickness and clamp the workpiece. Start the blade before it touches the workpiece and feed steadily along the line or guide rail, without forcing or lifting the machine during the cut. Check that the lower guard always returns to its position, wear safety glasses and ear defenders, and connect dust extraction whenever possible.
Where it is used
- Residential construction
- Renovation
Technical data
- Absorbed power (W): 1400
- No load speed (rpm): 5500
- Maximum cutting depth at 90° (mm): 67
- Maximum cutting depth at 45° (mm): 48,5
- Maximum cutting depth at 50° (mm): 43,5
- Blade diameter (mm): 190
- Hole diameter/shaft diameter (mm): 20 / 30
- Cable length (m): 4,0
- Sound power LwA: 108 dB(A)
- Sound pressure LpA (dB(A)): 100
- Sound pressure uncertainty K (dB(A)): 3
- Weight without cable (kg): 4,0
- Dimensions (mm): 310 × 246 × 258
- Max power output (W): 2200
Who it is for
Designed for formwork carpenters and joiners.
Related products
- Circular saw Makita HS7601J
- Circular saw Makita HS6601J
- Carbide-tipped wood discs Fervi 0685 — from the category Circular Saw Blades for Wood, Laminates, MDF and Chipboard
- Vacuum cleaner 42L Series 4200L Annovi Reverberi — from the category Professional Vacuum Cleaners
- Energy kit, LXT®, Li-ion, 18V, 2x 6.0 Ah, Makita 198077-8 — from the category Power Tool Batteries and Chargers
- Browse the whole category: Circular Saws (Cordless, Corded, Band) and Table Saws
Before you order
In your request, please state the length, the diameter, the power rating and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 23
| Absorbed power (W) | 1400 |
|---|---|
| No-load speed (rpm) | 5500 |
| Maximum cutting depth at 90° (mm) | 67 |
| Maximum cutting depth at 45° (mm) | 48,5 |
| Maximum cutting depth at 50° (mm) | 43,5 |
| Blade diameter (mm) | 190 |
| Hole diameter/shaft diameter (mm) | 20 / 30 |
| Cable length (m) | 4,0 |
| Sound power LwA | 108 dB(A) |
| Sound pressure LpA (dB(A)) | 100 |
| Sound pressure uncertainty K (dB(A)) | 3 |
| Weight without cable (kg) | 4,0 |
| Dimensions (mm) | 310 × 246 × 258 |
| Max power output (W) | 2200 |
| Maximum right tilt | 0 - 50 º |
| Electronic brake | Sì |
| Vibration level, wood cutting (m/s²) | ≤ 2,5 |
| Vibration uncertainty, factor K, wood cutting (m/s²) | 1,5 |
| Vibration level, metal cutting (m/s²) | 2,5 |
| Vibration uncertainty, factor K, metal cutting (m/s²) | 1,5 |
| Vacuum cleaner connection, in/out (mm) | 35 / 40 |
| EAN | 0088381652643 |
| Features | Double insulation, electric brake, dust collection, LED work area light |
Technical documents
Manufacturer documents (PDF, opens in a new tab).
Compare with similar models
Technical data declared by the manufacturers. An empty cell means the figure is not declared.
| Feature |
This model
Circular saw Makita HS7101JX
|
Circular saw CS 60 Milwaukee
|
Circular saw CS 85 SB Milwaukee
|
Circular saw Makita HS6101J
|
|---|---|---|---|---|
| Brand | Makita | Milwaukee | Milwaukee | Makita |
| Absorbed power | 1400 W | 1,600 | 2,200 | 1100 W |
| No-load speed | 5500 rpm | 5.800 | 4.500 | 5500 rpm |
| Maximum cutting depth at 90° | 67 mm | — | — | 54,5 mm |
| Maximum cutting depth at 45° | 48,5 mm | — | — | 39,5 mm |
| Blade diameter | 190 mm | 184 | 235 | 165 mm |
| Sound power LwA | 108 dB(A) | 103,5 | 102,8 | 109 dB(A) |
| Sound pressure LpA (dB(A)) | 100 dB(A | 92,5 | 91,8 | 101 dB(A |
| Sound pressure uncertainty K (dB(A)) | 3 dB(A | 3 | 3 | 3 dB(A |
| View product → | View product → | View product → |
