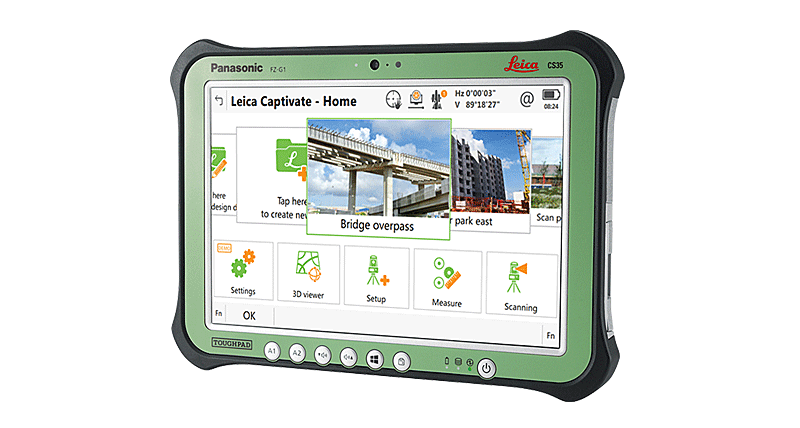

Rugged field tablet CS35 Leica

What it is

Rugged field tablet CS35 Leica. Key specifications: type Rugged field tablet for Captivate software, operating system Windows 10 Enterprise LTSC, memory SSD 256 GB.

The field controller or tablet is a rugged computer used to control survey instruments and collect survey data on site, resistant to dust, knocks and water.

What it is for

Used for levelling surfaces and structures and for setting out, for laser measurement of distances, heights and areas and for topographic surveying and site setting-out.

How to use it

Connect it to the instrument by cable or wirelessly and start the survey program. Record the points and save the data at the end. Keep it charged and protect the display and ports from dust and knocks.

Where it is used

• Road and motorway construction
• Residential construction
• Civil engineering

Technical data

• Type: Rugged field tablet for Captivate software
• Operating system: Windows 10 Enterprise LTSC
• Memory: SSD 256 GB
• Display: 10.1" (257 mm) sunlight readable
• Weight (g): 1100
• Dimensions (mm): 270 x 188 x 19
• Protection rating (IP): IP65

Who it is for

Designed for architects, site managers, works supervisors and surveyors.

Standards and compliance

Reference standards: CE marking in accordance with the EU directives applicable to the total stations sector, compliance with current technical and safety standards, technical documentation supplied by the manufacturer Leica.

Rugged field tablet CS35 Leica (Leica) — Bigger screen, clearer data, the power in your hands Immerse yourself fully in your data, with the power to manage any job from the palm of your hand using a tablet: By connecting the CS35 to a Leica Viva or Nova total station, the robotic operating range can almost double with the CTR35 radio device.
