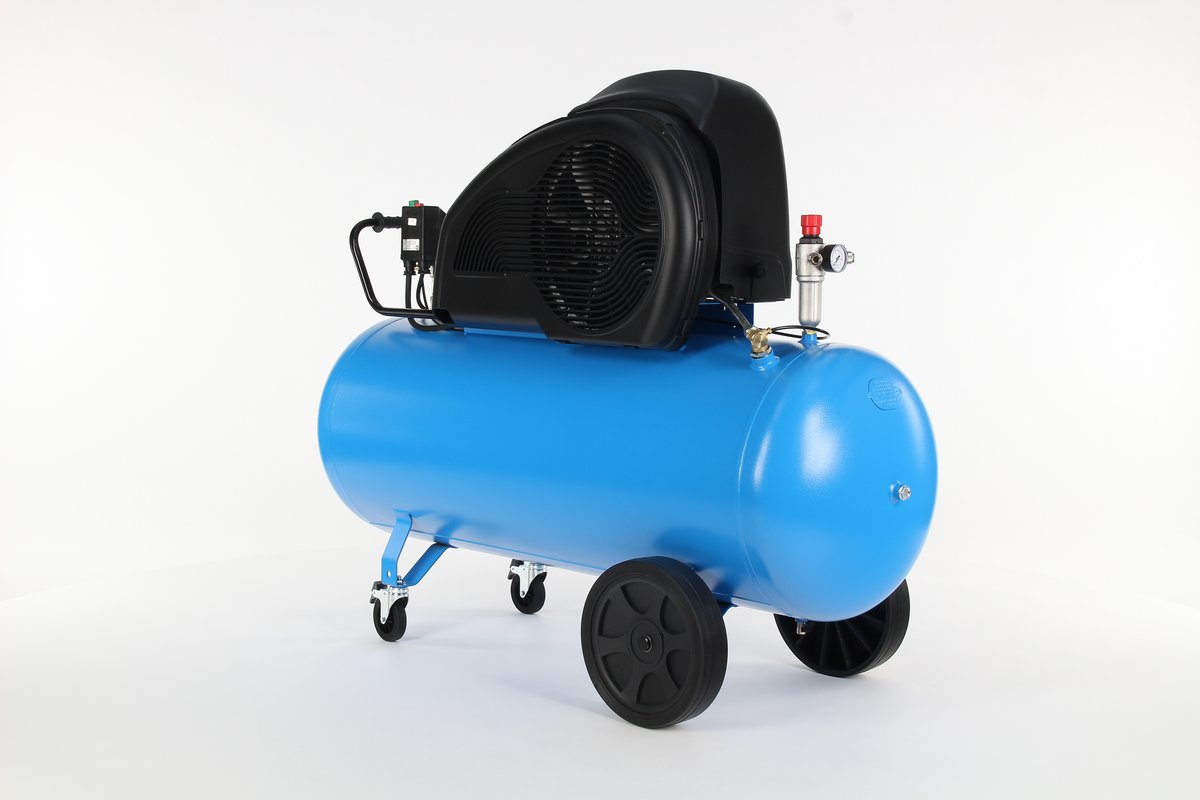

Silenced piston compressor S A39B 270 CT4 270 L Abac

What it is

Silenced piston compressor S A39B 270 CT4 270 L Abac. Key specifications: weight (kg) 117, dimensions (L×P×H mm) 1700 × 595 × 1245, max pressure (bar) 10.

A 100 to 270 litre compressor has a large receiver to supply several air tools continuously in workshops or body shops; most are belt-driven piston compressors.

What it is for

Used to supply air tools, from the compressor to the point of use and in compressed air systems, from generation in the compressor room to distribution on the shop floor.

How to use it

Install it on a level floor in a ventilated room, with the belt enclosed by its guard, and connect it to a suitable power supply, often three-phase. Check the oil on lubricated models, set the outlet pressure and distribute the air with hoses and fittings of suitable bore. Drain condensate daily and periodically check belt tension, filters and the safety valve.

Where it is used

• Vehicle body repair
• Mechanical engineering industry
• Mechanical workshops

Technical data

• Weight (kg): 117
• Dimensions (L×P×H mm): 1700 × 595 × 1245
• Max pressure (bar): 10
• Tank capacity (L): 270
• Air flow rate (l/min): 486
• Engine power: 4

Who it is for

Designed for vehicle body repairers, industrial maintenance technicians and mechanics.
