SDS Max XLR bit 35x570x450mm DeWalt DT60838-QZ

What it is

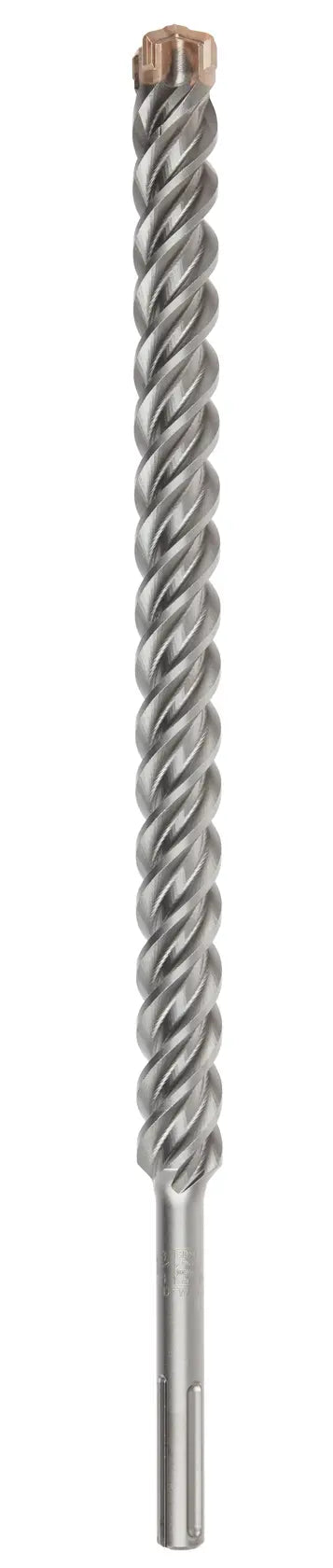

The DeWalt DT60838-QZ is an SDS Max XLR drill bit of 35 mm diameter with a working length of 450 mm and a total length of 570 mm. The tungsten carbide head and the 4 cutting edges ensure decisive penetration in concrete and masonry, while the reinforced core increases its life in heavy-duty work. The SDS Max shank makes it compatible with professional rotary hammers, including cordless ones, with a weight of 1.94 kg.

An SDS-Max bit is a carbide-tipped bit for rotary hammers with an SDS-Max chuck, for large-diameter, deep holes in concrete and masonry.

What it is for

Used for drilling reinforced concrete, in hammer or rotary hammer mode and for drilling solid and hollow masonry, clay brick and blocks.

How to use it

Clean and lightly grease the shank, insert it into the chuck until it locks and select hammer drilling. Drill with the hammer held in line with the hole, letting the machine's weight do the work without pushing, and withdraw the bit frequently to clear the dust. If you hit a reinforcing bar, stop and move the hole; do not cool a hot bit in water.

Where it is used

• Demolition
• Residential construction
• Building services
• Renovation

Technical data

• Diameter (mm): 35
• Head type: Tungsten carbide
• Reinforced core: Sì
• Width (cm): 4,6
• Height (cm): 4,6
• Working length (mm): 450
• Weight (kg): 1,94
• Masonry drilling type: SDS
• Shank connection: SDS MAX
• Length (cm): 61
• Pack: Label

Who it is for

Designed for demolition operatives, electricians, plumbers and bricklayers.

Related products

• SDS Max XLR bit 35x670x550mm DeWalt DT60839-QZ
• SDS Max XLR bit 35x380x250mm DeWalt DT60837-QZ
• Combination hammer SDS-Max 52mm XR FlexVolt 54V with 2 batteries 9Ah DeWalt DCH775X2-QW — from the category Combination Hammers
• L-shaped rotary hammer SDS-Plus, 3 modes, 30mm, 3.5J, 950W, with AVC, 355mm, DeWalt — from the category Rotary Hammers
• Resin Pure150-pro, epoxy, styrene-free, DeWalt DFC1110050 — from the category Chemical Anchors
• Browse the whole category: SDS Max Drill Bits

Before you order

In your request, please state the length, the diameter, the connection type and the quantities required, so we can give you the right quotation first time.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
