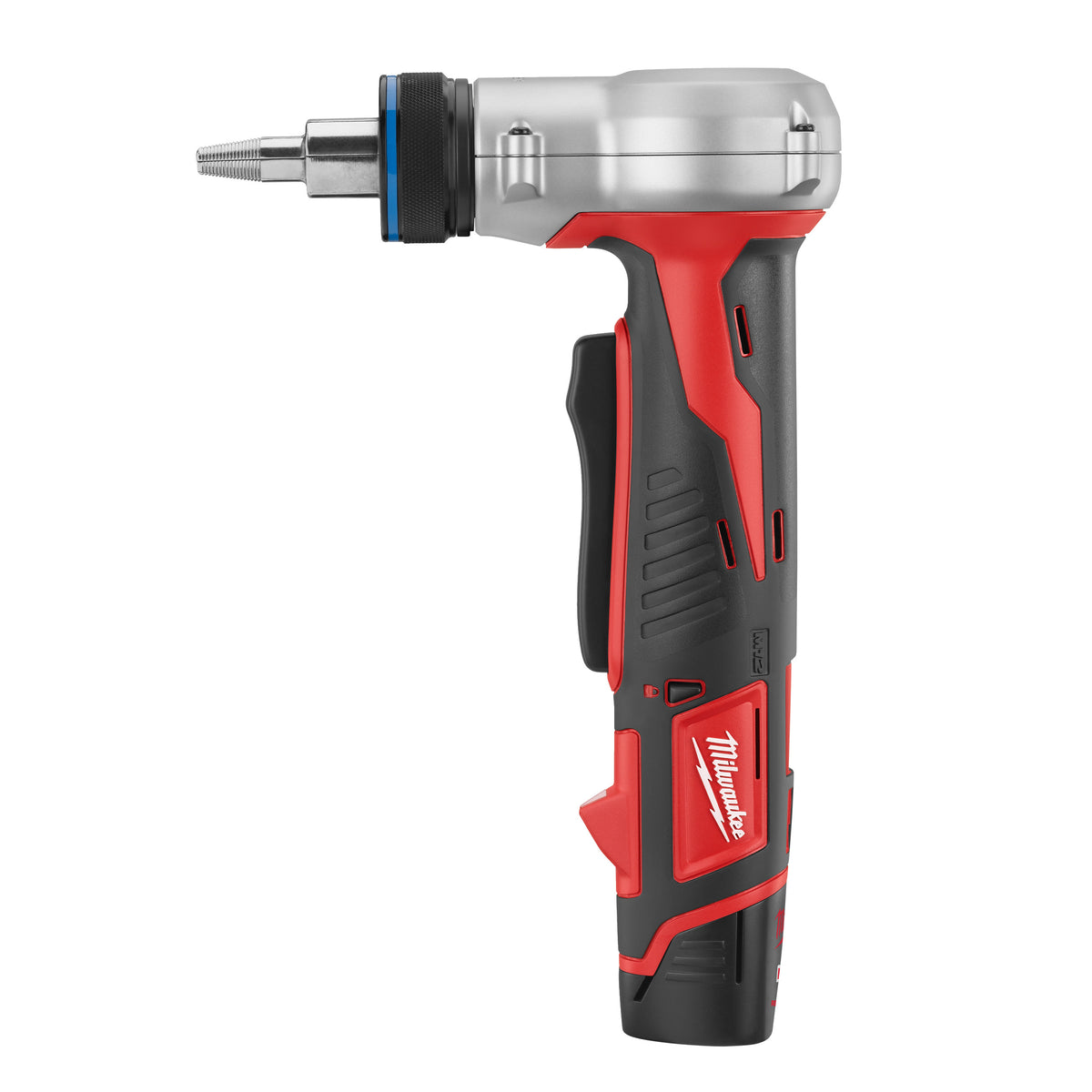

Compact expander M12 Milwaukee

What it is

Compact expander M12 Milwaukee. Key specifications: battery capacity (Ah) 2,0, batteries supplied 2, battery type Li-Ion.

The expander is a cordless or hydraulic tool that widens the end of a PEX pipe with expansion heads, so that the fitting can be inserted.

What it is for

Used in the installation and maintenance of plumbing systems, for pipe laying and for heating homes and small premises.

How to use it

Cut the pipe square, slide on the ring and fit the head of the right diameter. Expand in several stages, rotating the pipe, then insert the fitting immediately. The pipe contracts onto the fitting and the joint settles. Wear safety glasses and observe the waiting times.

Where it is used

• Building services

Technical data

• Battery capacity (Ah): 2,0
• Batteries supplied: 2
• Battery type: Li-Ion
• Voltage (V): 12
• Blade stroke (mm): 14
• Max pipe diameter 10 bar: 25 x 3,5 mm
• Includes heads (mm): 16/ 20/ 25
• Head type: Self-rotating
• No load speed (rpm): 60
• Weight with battery: 1,9 (M12 B2) kg
• Sound power uncertainty K (dB(A)): 3
• Sound pressure uncertainty K (dB(A)): 3
• Sound power LwA: 72 dB(A)
• Sound pressure LpA (dB(A)): 61

Who it is for

Designed for plumbers and heating and plumbing engineers.

Standards and compliance

Reference standards: CE marking in accordance with the EU directives applicable to the expanders sector, compliance with the technical and safety standards in force, technical documentation supplied by the manufacturer Milwaukee.

Compact expander M12 Milwaukee (Milwaukee®) — Compact expander M12. Automatic head rotation from 12 mm to 32 mm (6 bar) and up to 25 mm (10 bar), accurate one-handed expansion. REDLINK electronics protect the tool and battery against overloads.
