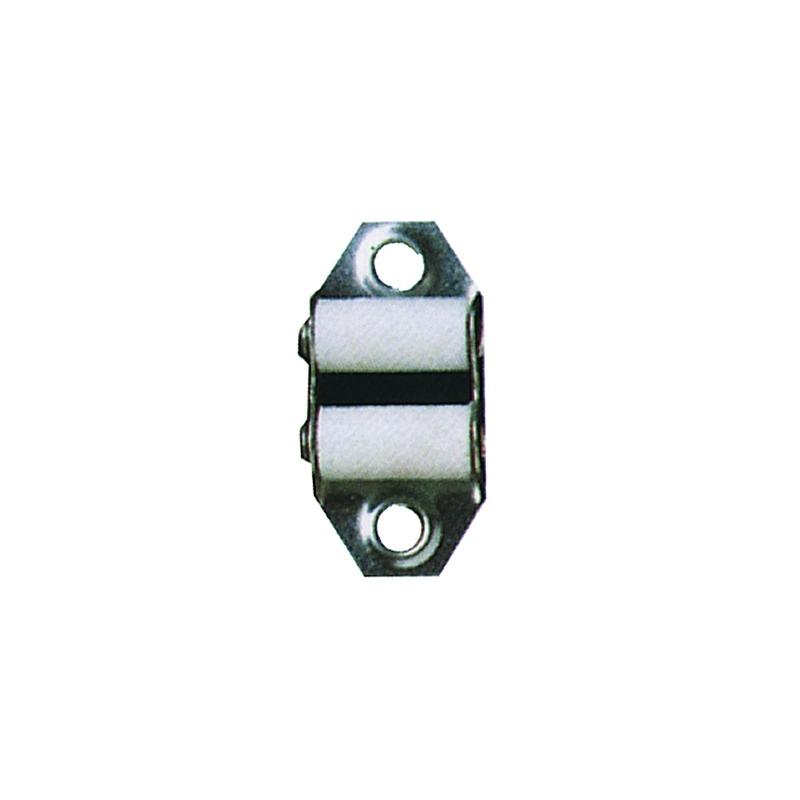

Belt guide

What it is

Belt guide. Key specifications: equipment supplied 2 nylon rollers, versions vertical, horizontal.

Door and window hardware comprises hinges, pivots, door closers, handles, locking devices and roller shutter accessories used to install and operate doors, windows and gates.

What it is for

Used for assembly work and for workshop and on-site repairs.

How to use it

Choose the part according to the weight and size of the leaf and the frame material, whether wood, steel or aluminium. Mark the position, fix with suitable screws, or weld weld-on pivots, and check alignment and closure before final tightening. Adjust door closers and adjustable hinges after installation, and lubricate moving parts periodically.

Where it is used

• Residential construction
• Building maintenance

Technical data

• Equipment supplied: 2 nylon rollers
• Versions: vertical, horizontal

Who it is for

Designed for metal fabricators and joiners.

Related products

• Transom guide with stop, art. 5963C
• Rod guide, art. 856
• 3-wing hinges, art. 1229 — from the category Door and Window Hinges
• Window and door screws 7.5 x 92 DeWalt DFM3510300 — from the category Window and Door Frame Screws
• Window handles 437/M pair — from the category Door Handles
• Browse the whole category: Window and Door Hardware

Before you order

Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.

For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
