Laser tracker Absolute AT500 Leica
Key features
- Measuring volumeUp to 320 m in diameter
- Min measuring distance (m)< 0,8
- Size with reflector (m)up to 160
- Probing 6dof b probe plusAcceptance angle up to 16°, up to 12 m
- Measuring frequency (Hz)100
- Automatic targetingPowerLock
What it is
Laser tracker Absolute AT500 Leica. Key specifications: measuring volume Up to 320 m in diameter, min measuring distance (m) < 0,8, size with reflector (m) up to 160.
The laser tracker is a high-precision 3D measuring instrument that follows a reflector with a laser beam and measures its position, to check large components, machines and plant.
What it is for
Used in quality control of parts and workmanship and for laser measurement of distances, heights and areas.
How to use it
Set it up stable on a tripod, away from vibration, and let it stabilise at the ambient temperature. Move the reflector along the points to be measured without interrupting the beam. Use it with its measuring software. Do not look into the beam, and carry it in its case.
Where it is used
- Mechanical engineering industry
- Mechanical workshops
Technical data
- Measuring volume: Up to 320 m in diameter
- Min measuring distance (m): < 0,8
- Size with reflector (m): up to 160
- Probing 6dof b probe plus: Acceptance angle up to 16°, up to 12 m
- Measuring frequency (Hz): 100
- Automatic targeting: PowerLock
- Environmental protection: IP54 (IEC certified)
- Operating temperature: Da -15 a +50 °C
- Power supply: 2 hot-swap IATA-compliant batteries, up to 6 h
- Orientation: Orient-to-Gravity
- Warranty: 24 months + 10 years of guaranteed service
Who it is for
Designed for industrial maintenance technicians.
Standards and compliance
Reference standards: CE marking in accordance with the EU directives applicable to the laser tracker systems sector, compliance with current technical and safety standards, technical documentation supplied by the manufacturer Leica.
Laser tracker Absolute AT500 Leica (Leica) — The Leica Absolute AT500 laser tracker is the most portable and rugged 3D laser tracker in the Hexagon range. From the carry case to large-scale measurement in moments: no cables thanks to the integrated controller and battery power, no levelling and no reflector initialisation. From reflector measurement up to 160 m to simplified 6DoF probing with the B-Probe plus, the AT500 is ready for every manufacturing and assembly challenge, in the workshop as well as in the field.
Technical specifications
| Feature | Value |
|---|---|
| Measuring volume | up to 320 m in diameter |
| Minimum measuring distance | < 0.8 m |
| Reflector measurement | up to 160 m |
| 6DoF probing (B-Probe plus) | acceptance angle up to 16°, up to 12 m |
| Measuring rate | 100 Hz |
| Automatic targeting | PowerLock |
| Environmental protection | IP54 (IEC certified) |
| Operating temperature | -15 to +50 °C |
| Power supply | 2 IATA-compliant hot-swap batteries, up to 6 h |
| Environmental monitoring | MeteoStation (temperature, pressure, humidity) |
| Orientation | Orient-to-Gravity |
| Warranty | 24 months + 10 years of guaranteed service support |
Related products

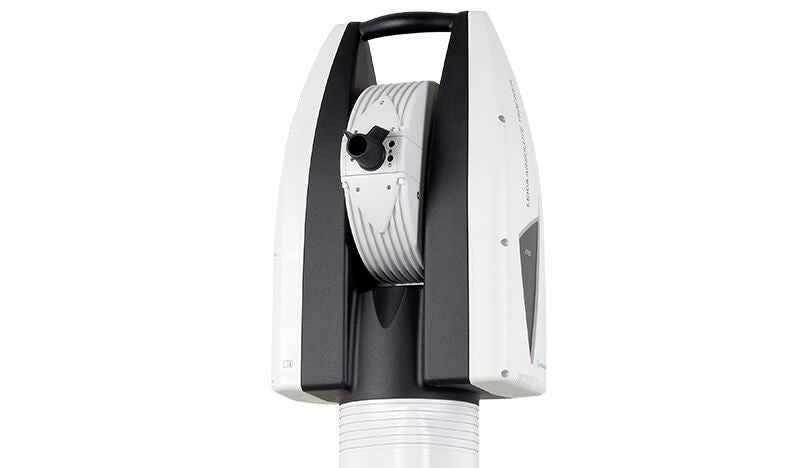

- Laser tracker Absolute AT930 Leica
- Bluetooth keyboard Captivate GKP100 Leica
- Combination pliers Metrica — from the category Laser Accessories
- Target for green-beam laser Stanley STHT1-77368 — from the category Laser Level Accessories
- CR123A battery — from the category Household Batteries
- Browse the whole category: Laser Measuring Tools and Accessories
Before you order
In your request, please state the dimensions and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
