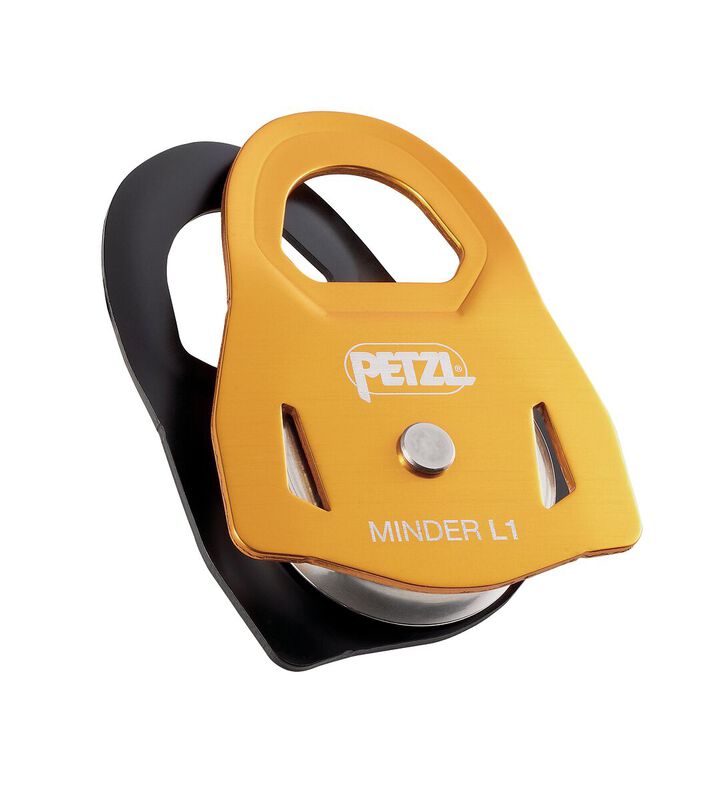

Pulley MINDER L1 Petzl
Key features
- Rope compatibility (mm)6 - 13
- Pulley diameter (mm)51
- Bearing typeBall type (sealed)
- Efficiency97%
- Maximum working load (kN)8
- Breaking load (kN)36
What it is
Pulley MINDER L1 Petzl. Key specifications: rope compatibility (mm) 6 - 13, pulley diameter (mm) 51, bearing type Ball type (sealed).
The rope pulley is a compact sheave with bearings, in an openable metal frame, used in work at height and in rescue to change the direction of the rope or to reduce the effort required; some models have an integrated rope clamp.
What it is for
Used for work at height, where access and restraint must be ensured for the whole job and for lifting loads, with accessories rated for the weight involved.
How to use it
Choose according to the rope diameter and the stated working load. Open the side plate, insert the rope into the groove and close it again, then connect it to the anchor point with a suitable karabiner, checking that the rope runs freely and in the correct direction. Use requires specific training: before each use, inspect it and withdraw it if it has cracks, wear or a damaged groove.
Where it is used
- Urban green space maintenance
- Civil protection
- Fire and rescue services
Technical data
- Rope compatibility (mm): 6 - 13
- Pulley diameter (mm): 51
- Bearing type: Ball type (sealed)
- Efficiency: 97%
- Maximum working load (kN): 8
- Breaking load (kN): 36
- Weight (g): 237
- Material: Aluminium, stainless steel
- Warranty: 3 years
Who it is for
Designed for building maintenance operatives, forestry workers, arborists and health and safety officers.
Related products
- Pulley MINDER L2 Petzl
- Pulley KOOTENAY Petzl
- Connecting links in blister pack — from the category Chains and Accessories
- Adjustable 4-leg web sling VarioWeb MultiSet SpanSet — from the category Lifting Slings
- Certified swivel lifting hooks — from the category Lifting and Towing Hooks
- Browse the whole category: Pulley Blocks and Hoists
Before you order
In your request, please state the diameter and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 9
| Rope compatibility (mm) | 6 - 13 |
|---|---|
| Pulley diameter (mm) | 51 |
| Bearing type | Ball type (sealed) |
| Efficiency | 97% |
| Maximum working load (kN) | 8 |
| Breaking load (kN) | 36 |
| Weight (g) | 237 |
| Material | Aluminium, stainless steel |
| Warranty | 3 years |
