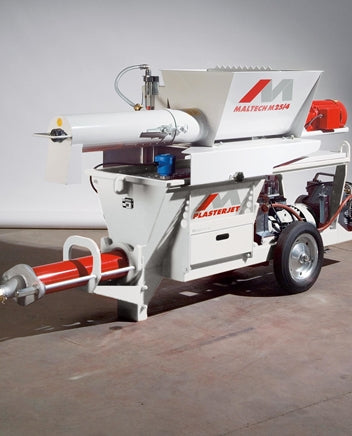

Mortar pump Plasterjet with continuous mixer M25/4 Maltech

What it is

Mortar pump Plasterjet with continuous mixer M25/4 Maltech. Key specifications: model Plasterjet & M25/4, gearbox Standard – 7.5 kW 400 V, pump 50/7/R WF.

The mortar pump is a machine that pushes mortar or premixed plaster along the hose to the point of application, generally with a screw system (rotor and stator).

What it is for

Used for plastering walls and ceilings, by hand or by machine and for mixing mortars and adhesives.

How to use it

Connect it to power and water, load the mortar into the hopper and start it with the hose connected. Adjust the flow rate to suit the product and keep the couplings tightly closed. At the end of the job, wash the pump and hoses immediately and check the wear of the rotor and stator.

Where it is used

• Residential construction
• Renovation

Technical data

• Model: Plasterjet & M25/4
• Gearbox: Standard – 7.5 kW 400 V
• Pump: 50/7/R WF
• Capacity: approx. 10-40 l/min
• Hose (mm): Ø 35
• Compressor: V-Meko 400 l/min
• Continuous mixer: M25/4 4 kW 400 V
• Width (mm): 650
• Length (mm): 2200
• Height (mm): 730
• Overall weight (kg): 330

Who it is for

Designed for bricklayers and plasterers.

Key strengths

• Description
• Technical data
• Dimensions and weight
• Standard equipment and accessories
• Continuous mixer can be installed on request
• Wide range of applications (various pumps can be used)
• Maximum grain size 6 mm

Standards and compliance

Compliance: CE compliance under the Machinery Directive 2006/42/EC, the EMC and Low Voltage directives, operator safety systems, components designed for continuous professional use on construction sites.
