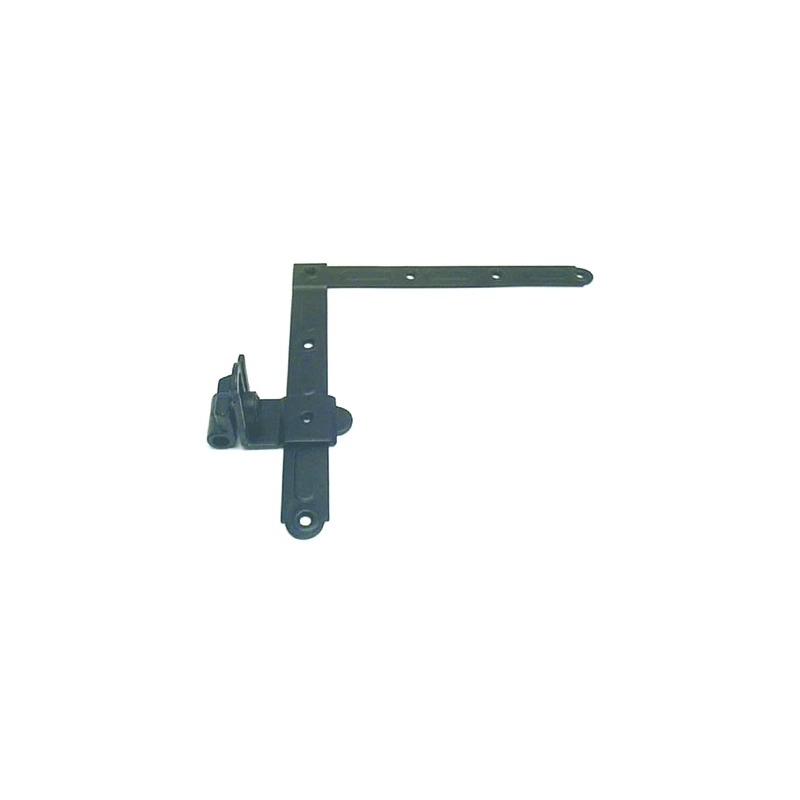

Adjustable square for window and door frames art. 4701, reveals 50-100 mm, pin Ø 10 mm

What it is

Adjustable square for window and door frames art. 4701, reveals 50-100 mm, pin Ø 10 mm. Key specifications: use 50 to 100 mm side plates, pin diameter (mm) 10.

Door and window hardware comprises hinges, pivots, door closers, handles, locking devices and roller shutter accessories used to install and operate doors, windows and gates.

What it is for

Used for general-purpose fixing into masonry, concrete and timber and for assembly work.

How to use it

Choose the part according to the weight and size of the leaf and the frame material, whether wood, steel or aluminium. Mark the position, fix with suitable screws, or weld weld-on pivots, and check alignment and closure before final tightening. Adjust door closers and adjustable hinges after installation, and lubricate moving parts periodically.

Where it is used

• Residential construction
• Building maintenance

Technical data

• Use: 50 to 100 mm side plates
• Pin diameter (mm): 10

Who it is for

Designed for metal fabricators and joiners.
