Car-wash treatment plant discharging to soil or for treated-water reuse Rototec
Key features
- Deoiling treatmentCoalescing filter aggregates residual oils and hydrocarbons, separating them from the effluent
- Intensive biological treatmentBacterial strain growth breaks down dissolved organic matter (BOD5, COD) and detergents (phosphorus) via an aerated trickling filter
- BIM objectLink present on the page but URL not provided (shown only as "#")
What it is

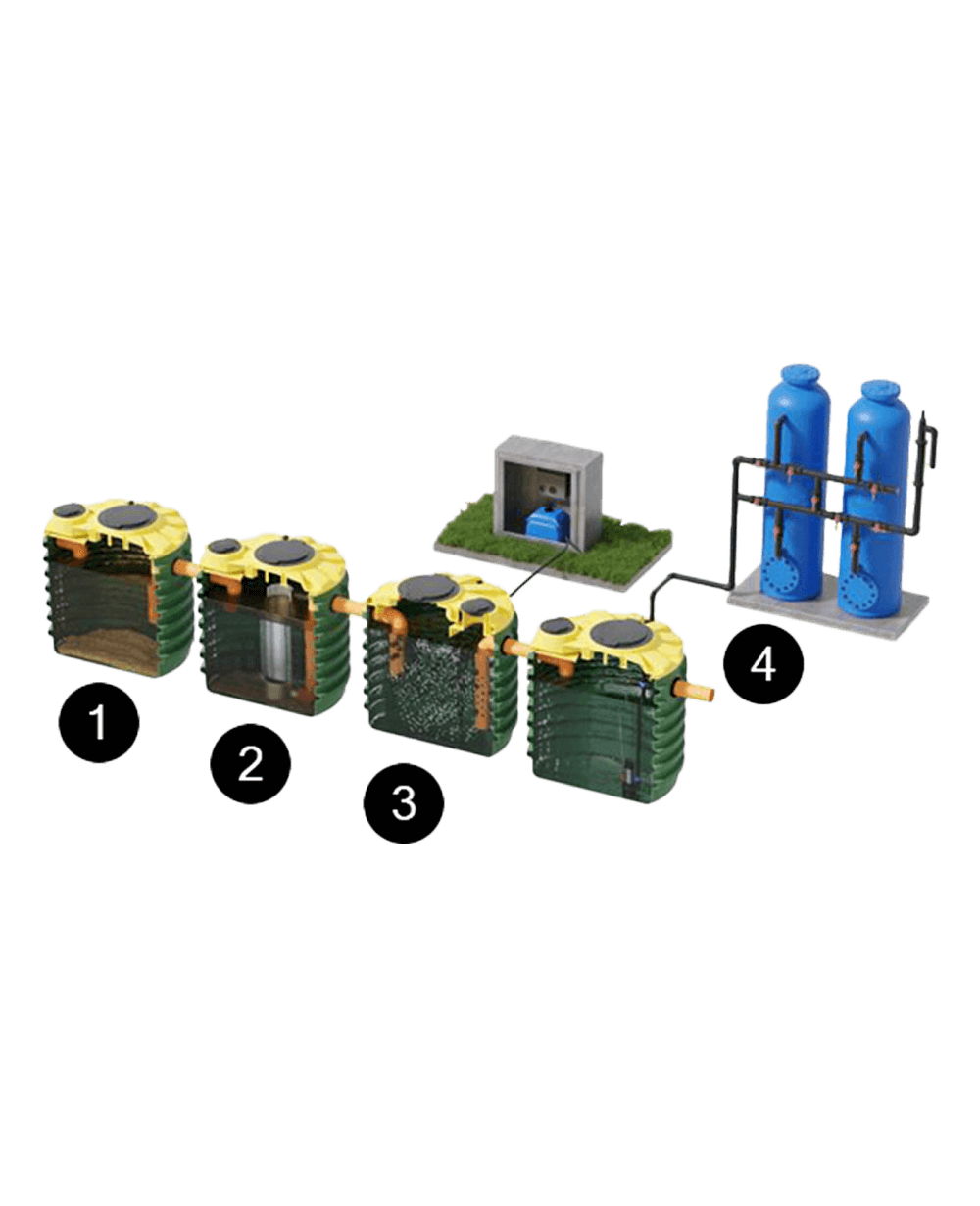

The plant treats washing wastewater with a complete multi-stage line for manual/automatic car washes and service areas, compliant with Italian Legislative Decree 152/2006 – Annex 5, Table 4 for discharge onto the ground. Operation in 4 stages: - Grit chamber: gravity separation of heavy materials (sand, sludge, gravel) at the bottom and light ones (oils, greases, foams) at the surface. Outlet pipe drawing from mid-tank. - Oil removal treatment: coalescing filter aggregates residual oils and hydrocarbons, separating them from the wastewater. - Intensive biological treatment: development of bacterial strains reduces dissolved organic matter (BOD5, COD) and detergents (phosphorus) by means of an aerated trickling filter. - Polishing treatment: quartzite and activated carbon filtration for discharge to open air/onto the ground or reuse in pre-washing.
Wastewater treatment systems are tanks, treatment units, pumping stations and components such as blowers, diffusers, control panels and covers for treating and pumping wastewater.
What it is for
Used for filtering system water and in the installation and maintenance of plumbing systems.
How to use it
Bury the tanks on a level bedding layer, connect inlet and outlet at the correct falls and backfill while gradually filling them with water to balance the soil pressure. Have blowers, pumps and control panels connected by an electrician and keep them protected from water. Inspect the system through the covers, clean the diffusers and have the sludge emptied regularly.
Where it is used
- Building services
- Water engineering works
Technical data
- Deoiling treatment: Coalescing filter aggregates residual oils and hydrocarbons, separating them from the effluent
- BIM object: Link present on the page but URL not provided (shown only as "#")
Who it is for
Designed for plumbers.
Standards and safety
Italian Legislative Decree 152/2006 (Annex 5, Table 4) UNI EN 858 1 and UNI EN 858 2 (oil separator) UNI EN 1825 1 (sand separator) Regional standards on the treatment of first-flush and runoff water ISO 9001/2008 (manufacturer's certification)
Related products
- Outdoor car-wash treatment plant Rototec
- Car-wash treatment plant discharging to surface watercourse Rototec
- Rectangular inspection chamber — from the category Inspection Chambers
- Submersible electric pump for foul water JV Wortex — from the category Submersible Wastewater Pumps
- Electrical panel component Friggeri PS-DS002001022SP — from the category Distribution Boards and Protection Devices
- Browse the whole category: Water Purification
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Specifications 3
| Deoiling treatment | Coalescing filter aggregates residual oils and hydrocarbons, separating them from the effluent |
|---|---|
| Intensive biological treatment | Bacterial strain growth breaks down dissolved organic matter (BOD5, COD) and detergents (phosphorus) via an aerated trickling filter |
| BIM object | Link present on the page but URL not provided (shown only as "#") |
