Outdoor car-wash treatment plant Rototec
Key features
- Sand separatorGravimetric separation of sand, sludge, gravel
- Oil removalCoalescing filter for aggregating oils and hydrocarbons
- Intensive biological treatmentReduction of BOD5, COD and phosphorus by aerated trickling filter
- Technical boxPE container with timed electrical panel and blower
What it is

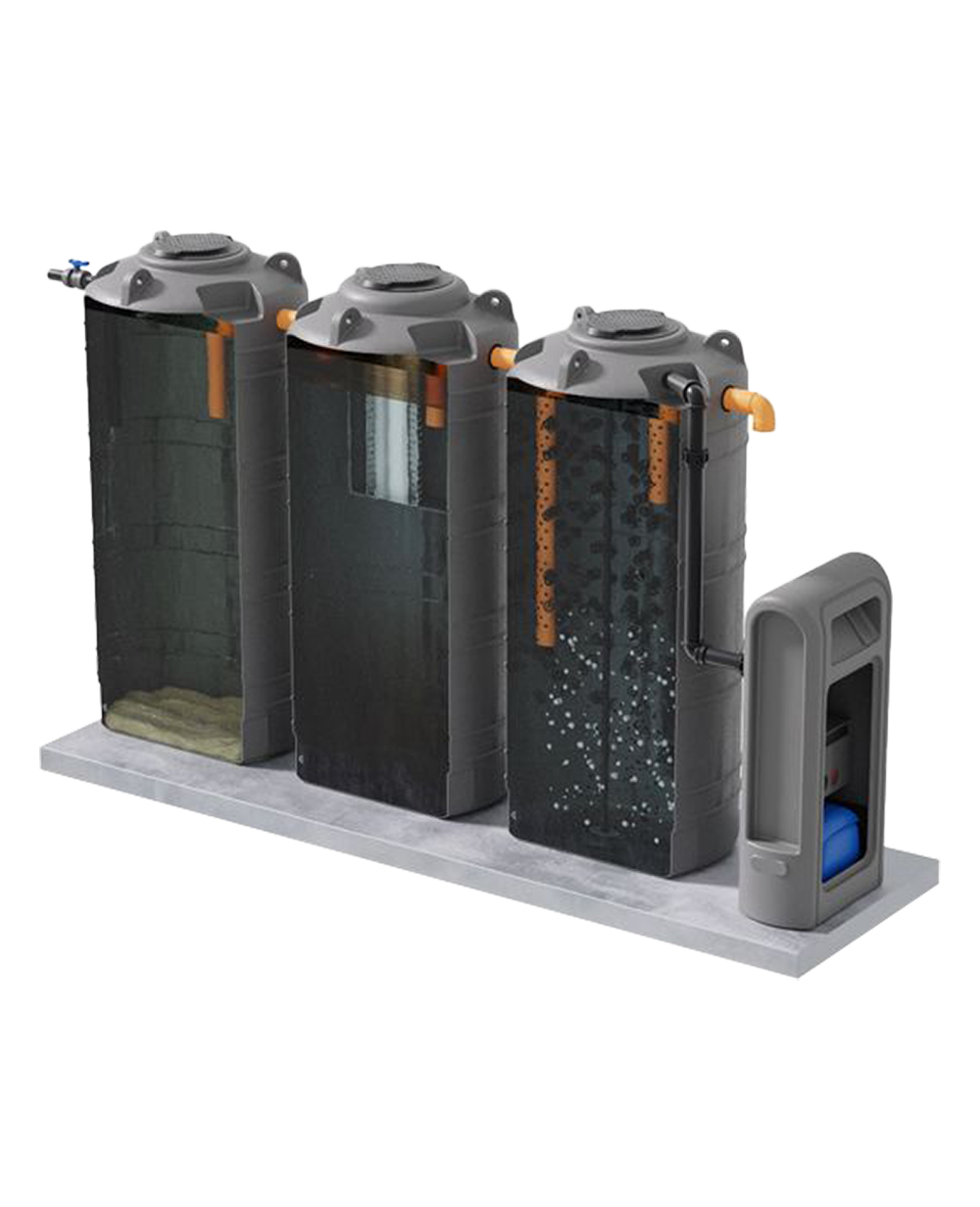

The treatment plant for outdoor car washes is a monobloc solution on a steel base, ideal for service areas and washing centres where underground installation is not possible; it integrates a grit chamber, a hydrocarbon separator with coalescing filter and an aerated trickling filter. The system works in four stages: - Grit chamber: gravity separation of sand, sludge and gravel. - Oil removal: coalescing filter for aggregating oils and hydrocarbons. - Intensive biological treatment: reduction of BOD5, COD and phosphorus by means of an aerated trickling filter. - Technical box: PE container with timed electrical panel and blower.
Wastewater treatment systems are tanks, treatment units, pumping stations and components such as blowers, diffusers, control panels and covers for treating and pumping wastewater.
What it is for
Used for filtering system water and in the installation and maintenance of plumbing systems.
How to use it
Bury the tanks on a level bedding layer, connect inlet and outlet at the correct falls and backfill while gradually filling them with water to balance the soil pressure. Have blowers, pumps and control panels connected by an electrician and keep them protected from water. Inspect the system through the covers, clean the diffusers and have the sludge emptied regularly.
Where it is used
- Building services
- Water engineering works
Technical data
- Sand separator: Gravimetric separation of sand, sludge, gravel
- Oil removal: Coalescing filter for aggregating oils and hydrocarbons
- Intensive biological treatment: Reduction of BOD5, COD and phosphorus by aerated trickling filter
- Technical box: PE container with timed electrical panel and blower
Who it is for
Designed for plumbers.
Standards and safety
Italian Legislative Decree 152/2006 (Annex 5 – Table 3) Legislative Decree 152 of 03/04/2006 Legislative Decree no. 152 of 11/05/1999 + 91/271/EEC + 91/676/EEC UNI EN 1825 1 UNI EN 858 1 (class I coalescence separator) UNI EN 858 2
Related products
- Car-wash treatment plant (Table 4) Rototec
- Car-wash treatment plant discharging to soil or for treated-water reuse Rototec
- Round inspection chamber with tap — from the category Inspection Chambers
- Submersible electric pump for foul water JV Wortex — from the category Submersible Wastewater Pumps
- Residual current device, Friggeri FR-DP440/30 — from the category Distribution Boards and Protection Devices
- Browse the whole category: Water Purification
Before you order
Tell us the quantities you need and the intended use: if there is a more suitable version, or an equivalent available sooner, we will let you know.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Specifications 4
| Sand separator | Gravimetric separation of sand, sludge, gravel |
|---|---|
| Oil removal | Coalescing filter for aggregating oils and hydrocarbons |
| Intensive biological treatment | Reduction of BOD5, COD and phosphorus by aerated trickling filter |
| Technical box | PE container with timed electrical panel and blower |
