Car-wash treatment plant (Table 4) Rototec

What it is

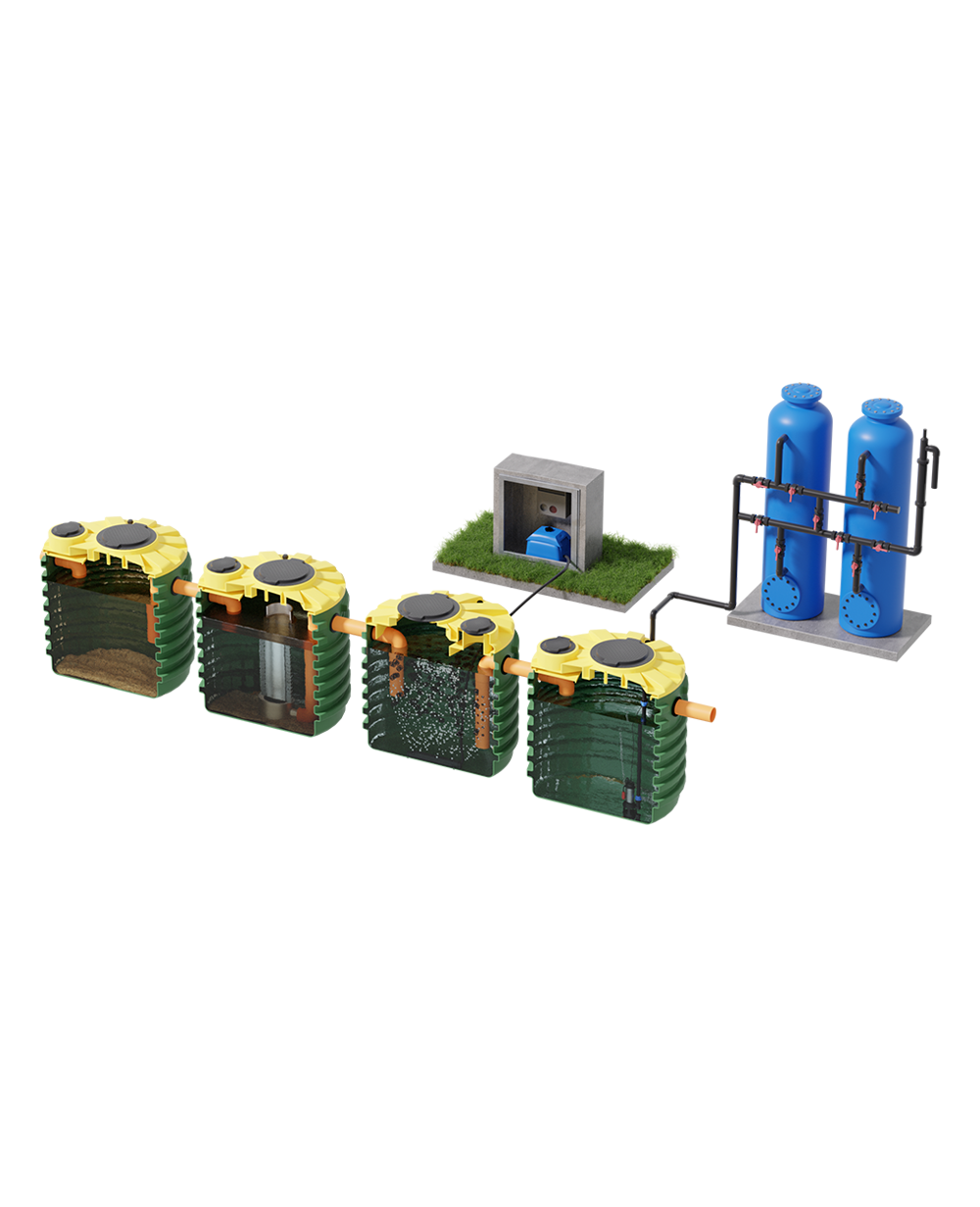

The product treats the washing water from vehicles (manual and automatic), removing sand, oils/hydrocarbons and pollutants to comply with the limits of Table 4 of Legislative Decree 152/2006, with a separator compliant with UNI EN 858-1. Intended uses: manual vehicle washing areas; automatic/gantry washing systems; vehicle car washes. Technical advantages: compliance with the limits of Table 4 of Legislative Decree 152/2006; oil separator in accordance with UNI EN 858-1; scheduled maintenance with periodic inspections. Purification process: the treatment comprises grit removal (gravity separation), oil separation (coalescing filter), biological treatment (trickling filter), and optionally filtration with quartzite and activated carbon. "The blowers connected to the aerated filters must run continuously (24 h/24 h)." Note: this product has the same DEPAUTO.. article codes.

Wastewater treatment systems are tanks, treatment units, pumping stations and components such as blowers, diffusers, control panels and covers for treating and pumping wastewater.

What it is for

Used for filtering system water and in the installation and maintenance of plumbing systems.

How to use it

Bury the tanks on a level bedding layer, connect inlet and outlet at the correct falls and backfill while gradually filling them with water to balance the soil pressure. Have blowers, pumps and control panels connected by an electrician and keep them protected from water. Inspect the system through the covers, clean the diffusers and have the sludge emptied regularly.

Where it is used

• Building services
• Water engineering works

Technical data

• Material: corrugated one-piece polyethylene (PE) units
• Standard: D.Lgs 152/2006 (Table 4); UNI EN 858-1 (oil separator); UNI EN 1825-1 (sand separator)
• Use: Treating wastewater from manual and automatic vehicle washing areas

Who it is for

Designed for plumbers.

Standards and safety

Italian Legislative Decree 152/2006 UNI EN 858 1 (oil separator) UNI EN 1825 1 (sand separator) ISO 9001/2008 (company certification) Regional standards on the treatment of first-flush and runoff water
