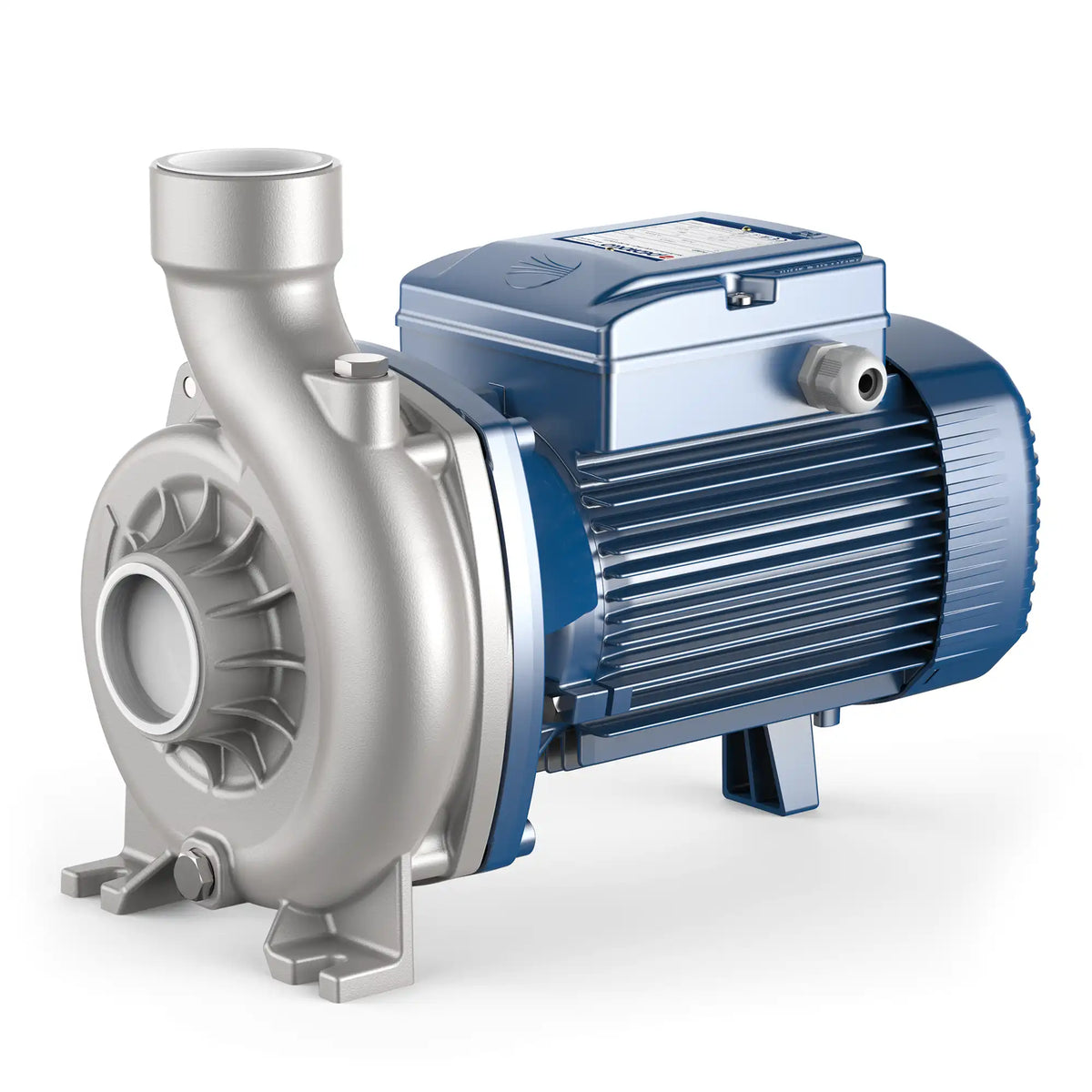

Electric pump NGA-PRO Pedrollo
Key features
- CapacityUp to 900 l/min (54 m³/h)
- Gauge suction heightUp to 7 m
- Ambient temperatureFrom -10 °C to +40 °C
- Motor2-pole
- HousingAISI 316 stainless steel
- HeadUp to 20.5 m
What it is
Electric pump NGA-PRO Pedrollo. Key specifications: capacity Up to 900 l/min (54 m³/h), gauge suction height Up to 7 m, ambient temperature From -10 °C to +40 °C.
A clean water pump is a surface or submersible electric pump that lifts or pressurises clear water from wells, cisterns and tanks.
What it is for
Used in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.
How to use it
Install surface pumps on a level base close to the draw-off point, with a foot valve on the suction pipe, and fill them with water before first start-up; lower submersible pumps suspended on a rope. Use them only with clean, sand-free water and never let them run dry. Connect them to a circuit protected by an RCD and, in winter, drain outdoor pumps to protect them from frost.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Capacity: Up to 900 l/min (54 m³/h)
- Gauge suction height: Up to 7 m
- Ambient temperature: From -10 °C to +40 °C
- Motor: 2-pole
- Housing: AISI 316 stainless steel
- Head: Up to 20.5 m
- Liquid temperature: From -10 °C to +90 °C
- Max pressure in the pump body: 6 bar for NGA1-2 -PRO – 10 bar for NGA3-PRO
- Solids passage: Up to Ø 12 mm for NGA1-2 -PRO – up to Ø 20 mm for NGA3-PRO
- IP protection rating: IPX4
- Pump body: Stainless steel AISI 316
- Impeller: Stainless steel AISI 316
- Shaft: AISI 316L stainless steel
Who it is for
Designed for plumbers, agricultural workers and heating and plumbing engineers.
Related products
- Electric pump NK Pedrollo
- Electric pump NGA Pedrollo
- Non-toxic coiled hose — from the category Water Hoses and Layflat Hoses
- 90° FF Angles, art. 90 — from the category Galvanised Pipe Fittings
- Drip-catch tray for waste oil containers Butti — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 13
| Capacity | Up to 900 l/min (54 m³/h) |
|---|---|
| Gauge suction height | Up to 7 m |
| Ambient temperature | From -10 °C to +40 °C |
| Motor | 2-pole |
| Housing | AISI 316 stainless steel |
| Head | Up to 20.5 m |
| Liquid temperature | From -10 °C to +90 °C |
| Max pressure in the pump body | 6 bar for NGA1-2 -PRO – 10 bar for NGA3-PRO |
| Solids passage | Up to Ø 12 mm for NGA1-2 -PRO – up to Ø 20 mm for NGA3-PRO |
| IP protection rating | IPX4 |
| Pump body | Stainless steel AISI 316 |
| Impeller | Stainless steel AISI 316 |
| Shaft | AISI 316L stainless steel |
