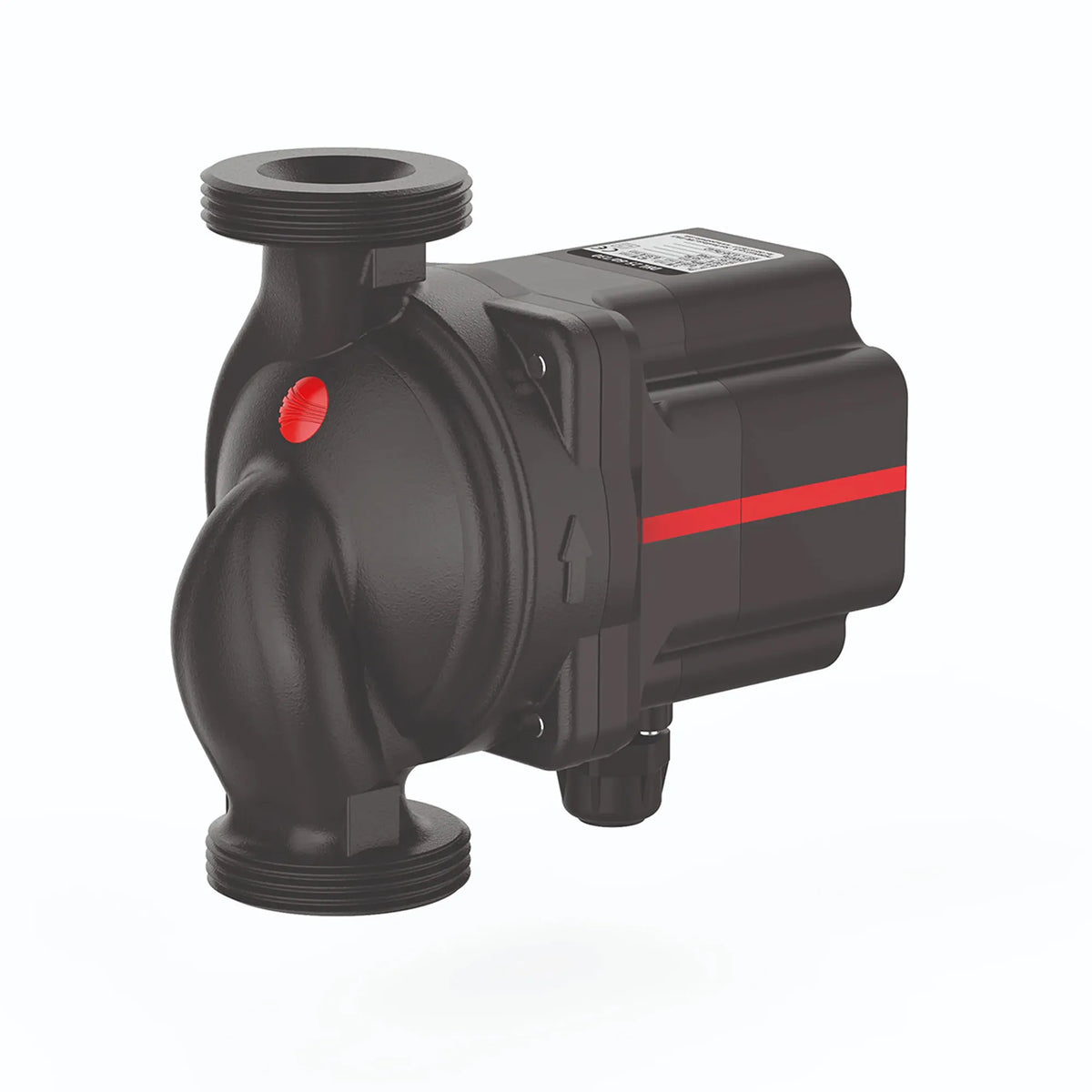

Electronic circulator pump DHL Pedrollo
Key features
- CapacityUp to 3.5 m³/h (0.97 l/s)
- Head (m)up to 6
- Liquid temperatureFrom +2 °C to +95 °C
- Ambient temperatureFrom 0 °C to +40 °C
- Max pressure in the pump body (bar)6
- Motor2-pole
What it is
Electronic circulator pump DHL Pedrollo. Key specifications: capacity Up to 3.5 m³/h (0.97 l/s), head (m) up to 6, liquid temperature From +2 °C to +95 °C.
A clean water pump is a surface or submersible electric pump that lifts or pressurises clear water from wells, cisterns and tanks.
What it is for
Used in the installation and maintenance of plumbing systems, for installing building services and plant and for heating homes and small premises.
How to use it
Install surface pumps on a level base close to the draw-off point, with a foot valve on the suction pipe, and fill them with water before first start-up; lower submersible pumps suspended on a rope. Use them only with clean, sand-free water and never let them run dry. Connect them to a circuit protected by an RCD and, in winter, drain outdoor pumps to protect them from frost.
Where it is used
- Residential construction
- Building services
Technical data
- Capacity: Up to 3.5 m³/h (0.97 l/s)
- Head (m): up to 6
- Liquid temperature: From +2 °C to +95 °C
- Ambient temperature: From 0 °C to +40 °C
- Max pressure in the pump body (bar): 6
- Motor: 2-pole
- IP protection rating: IP44
- Pump body: Cast iron
- Impeller: Technopolymer
- Shaft: Ceramic
Who it is for
Designed for plumbers, HVAC technicians and heating and plumbing engineers.
Related products
- Electric pump 2-5CP - I Pedrollo
- Electric pump 2-5CR Pedrollo
- Ultimate yellow hose — from the category Water Hoses and Layflat Hoses
- Reducing sockets MF art. 246 — from the category Galvanised Pipe Fittings
- Modular underground tanks, Minitank, polyethylene, Rototec — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 10
| Capacity | Up to 3.5 m³/h (0.97 l/s) |
|---|---|
| Head (m) | up to 6 |
| Liquid temperature | From +2 °C to +95 °C |
| Ambient temperature | From 0 °C to +40 °C |
| Max pressure in the pump body (bar) | 6 |
| Motor | 2-pole |
| IP protection rating | IP44 |
| Pump body | Cast iron |
| Impeller | Technopolymer |
| Shaft | Ceramic |
