Pedrollo PKS - Self-priming AMES Srl

Code PKS

Key specifications

TipologiaElettropompa
Codice articoloPKS
Portatafino a 50 l/min (3.0 m³/h)
Prevalenzafino a 70 m
Altezza d aspirazione manometricafino a 9 m
Temperatura del liquidoda -10 °C fino a +60 °C

See all 14 specifications

Advantages

Pedrollo Reliability: renowned brand in the Self-priming pump sector
Constant Performance: tested for professional use
Compatibility: integrable with the Pedrollo line
AMES Support: pre- and post-sales technical consulting

Applications

The Pedrollo PKS - Self-priming pumps AMES Srl is intended for professional use in the following contexts:

Construction sites, infrastructures, and plants
Workshops, laboratories, and industrial production
Specialized technical maintenance
Operators and professionals in the Self-priming pump sector

Standards and Compliance

Reference regulations: CE marking according to EU directives applicable to the Self-priming pump sector, compliance with current technical and safety regulations, technical documentation provided by the manufacturer Pedrollo.

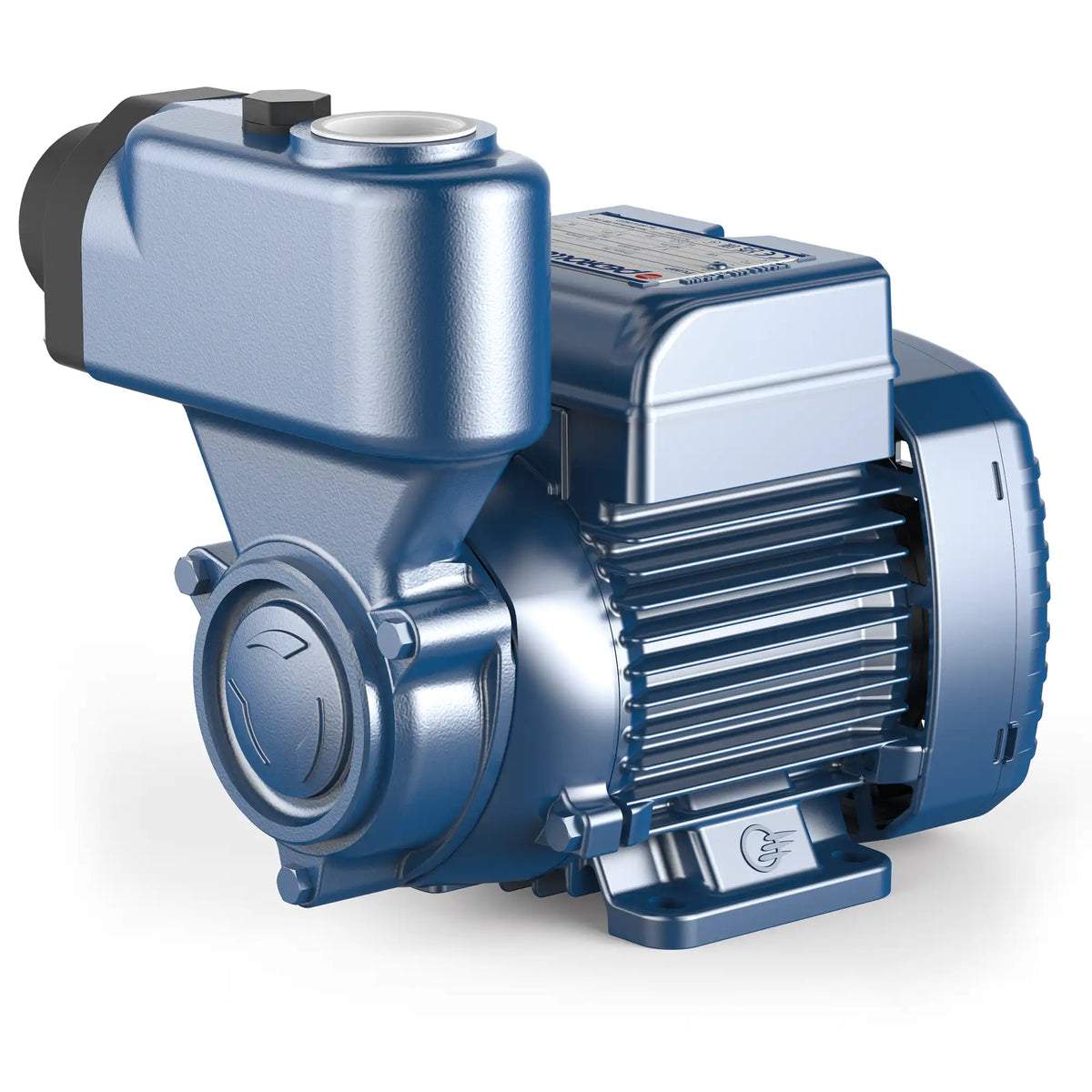

PKS (Pedrollo) — Peripheral impeller self-priming electric pumps. They are recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive to the pump's constituent materials. Due to their compactness, reliability, and cost-effectiveness, they are suitable for domestic use, for water distribution in conjunction with small autoclave tanks, for irrigating vegetable gardens and gardens, for drawing water from tanks, and in all cases where there is air or gas in the liquid to be pumped; the pump is supplied with a non-return flap valve on the suction side. Construction characteristics: Peripheral electric pumps with brass pump body. Single-impeller and twin-impeller centrifugals. Single-impeller centrifugal pumps in stainless steel. Twin-impeller centrifugal electric pumps. Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy

Technical data

Feature	Value
Flow rate	up to 50 l/min (3.0 m³/h)
Head	up to 70 m
Suction lift	up to 9 m
Liquid temperature	from -10 °C to +60 °C
Ambient temperature	up to +40 °C (+50 °C for PKS 60)
Maximum pressure in the pump body	– 6 bar for PKS 60, PKS 65 – 7 bar for PKS 80
Motor	2 poles
Protection rating	IP X4
Pump body	Cast iron
Impeller	Brass
Shaft	AISI 431 stainless steel AISI 430F stainless steel (for PKS 60, PKS 65)
Motor casing	Aluminum with brass cover

Main features

Construction characteristics
Peripheral electric pumps with brass pump body
Single and twin impeller centrifugals
Stainless steel single impeller centrifugal pumps
Twin impeller centrifugal electric pumps
Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italia

Why choose Pedrollo

World leader in pumps: Pedrollo S.p.A., Italian excellence in electric pumps for water, recycling, and circularity
Complete range: surface, submersible, sub-mersible pumps, pressure booster sets, control panels, and accessories
Hydraulic quality: excellent hydraulic characteristics, reliability, and compactness for domestic, civil, industrial, and agricultural use
Made in Italy: Italian design and production, distributed in over 160 countries

Request a quote from AMES Srl for PKS: we will contact you with the model, hydraulic performance, and supply conditions.

Quantity

Products may not be in stock.
Delivery times depend on the manufacturer's speed.

Specifications

Tipologia	Elettropompa
Codice articolo	PKS
Portata	fino a 50 l/min (3.0 m³/h)
Prevalenza	fino a 70 m
Altezza d aspirazione manometrica	fino a 9 m
Temperatura del liquido	da -10 °C fino a +60 °C
Temperatura ambiente	fino a +40 °C (+50 °C per PKS 60)
Pressione massima nel corpo pompa	– 6 bar per PKS 60, PKS 65 – 7 bar per PKS 80
Motore	2 poli
Grado di protezione	IP X4
Corpo pompa	Ghisa
Girante	Ottone
Albero	Acciaio inox AISI 431 Acciaio inox AISI 430F (per PKS 60, PKS 65)
Lanterna	Alluminio con coperchio in ottone
