A.M.E.S. srlHose with galvanised steel spiral
Carry water for irrigating, washing and supplying machines in the garden and on site.
All Pedrollo products

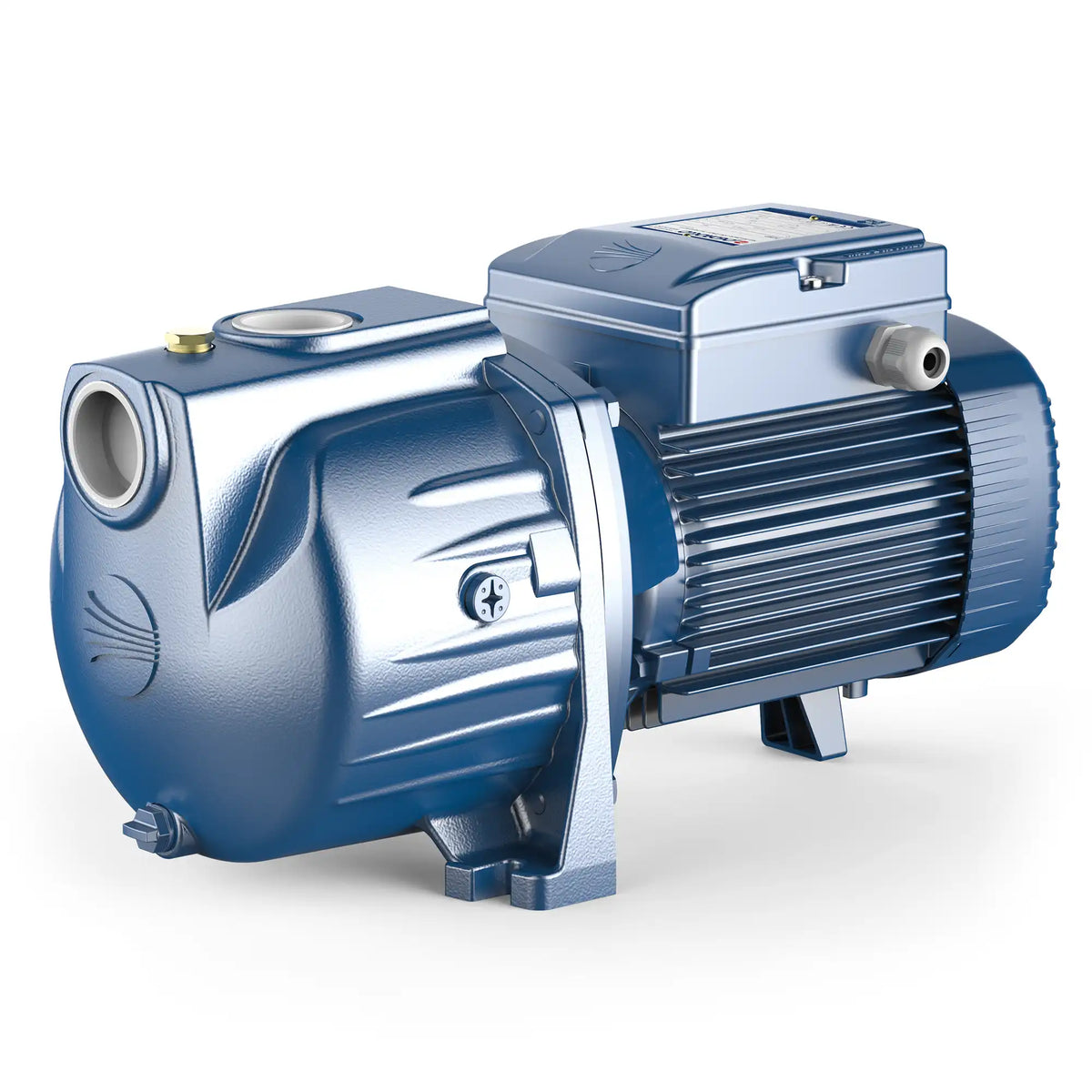

Electric pump SPRINKLER Pedrollo
Key features
- ProtectionIPX4
- LidFont
- CapacityUp to 300 l/min (18 m³/h)
- HeadUp to 25.5 m
- Gauge suction heightUp to 9 m
- Liquid temperatureFrom -10 °C to +40 °C
What it is
Electric pump SPRINKLER Pedrollo. Key specifications: protection IPX4, lid Font, capacity Up to 300 l/min (18 m³/h).
A clean water pump is a surface or submersible electric pump that lifts or pressurises clear water from wells, cisterns and tanks.
What it is for
Used in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.
How to use it
Install surface pumps on a level base close to the draw-off point, with a foot valve on the suction pipe, and fill them with water before first start-up; lower submersible pumps suspended on a rope. Use them only with clean, sand-free water and never let them run dry. Connect them to a circuit protected by an RCD and, in winter, drain outdoor pumps to protect them from frost.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Protection: IPX4
- Lid: Font
- Capacity: Up to 300 l/min (18 m³/h)
- Head: Up to 25.5 m
- Gauge suction height: Up to 9 m
- Liquid temperature: From -10 °C to +40 °C
- Ambient temperature: Up to +40 °C
- Max pressure in the pump body (bar): 10
- Motor: 2-pole
- Pump body: Cast iron
- Impeller: Noryl™
- Ejector unit: Noryl™
- Shaft: Stainless steel AISI 431
Who it is for
Designed for plumbers, agricultural workers and heating and plumbing engineers.
Related products
- Electric pump TOP Pedrollo
- Electric pump PV Pedrollo
- PrimFlex Plus flexible hose 5/8" – 50m Kärcher — from the category Water Hoses and Layflat Hoses
- Sockets art. 270 — from the category Galvanised Pipe Fittings
- Tank with electric pump for diesel transfer DCC 200 Wortex — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 13
| Protection | IPX4 |
|---|---|
| Lid | Font |
| Capacity | Up to 300 l/min (18 m³/h) |
| Head | Up to 25.5 m |
| Gauge suction height | Up to 9 m |
| Liquid temperature | From -10 °C to +40 °C |
| Ambient temperature | Up to +40 °C |
| Max pressure in the pump body (bar) | 10 |
| Motor | 2-pole |
| Pump body | Cast iron |
| Impeller | Noryl™ |
| Ejector unit | Noryl™ |
| Shaft | Stainless steel AISI 431 |
