A.M.E.S. srlHose with galvanised steel spiral
Carry water for irrigating, washing and supplying machines in the garden and on site.
All Pedrollo products

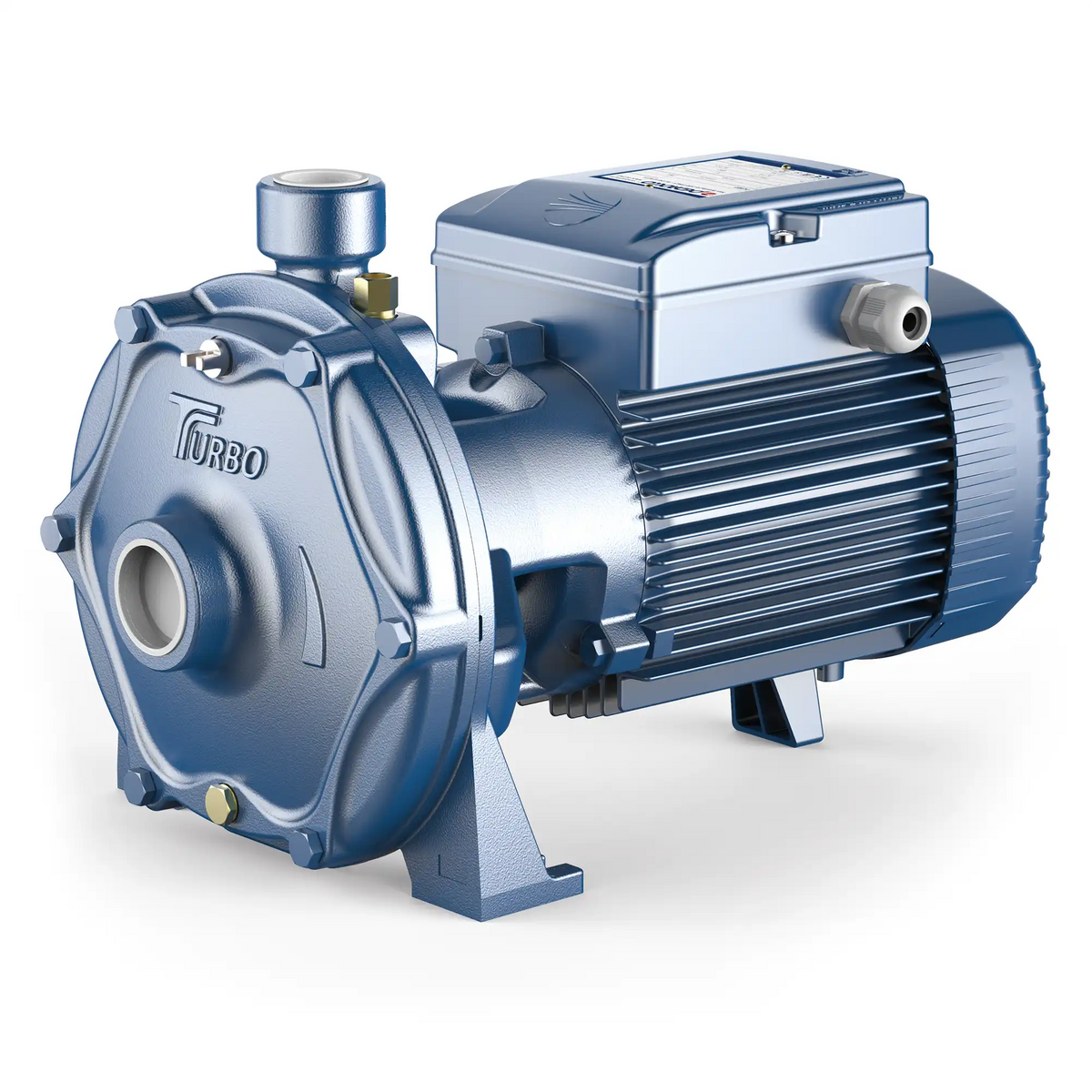

Electric pump TURBO Pedrollo
Key features
- CapacityUp to 200 l/min (12 m³/h)
- HeadUp to 68 m
- Gauge suction heightUp to 7 m
- Liquid temperatureFrom -10 °C to +90 °C
- Ambient temperatureFrom -10 °C to +40 °C
- Max pressure in the pump body (bar)10
What it is
Electric pump TURBO Pedrollo. Key specifications: capacity Up to 200 l/min (12 m³/h), head Up to 68 m, gauge suction height Up to 7 m.
A clean water pump is a surface or submersible electric pump that lifts or pressurises clear water from wells, cisterns and tanks.
What it is for
Used in irrigation systems, from the water supply point to the emitter and for pumping water out of excavations, tanks and sumps.
How to use it
Install surface pumps on a level base close to the draw-off point, with a foot valve on the suction pipe, and fill them with water before first start-up; lower submersible pumps suspended on a rope. Use them only with clean, sand-free water and never let them run dry. Connect them to a circuit protected by an RCD and, in winter, drain outdoor pumps to protect them from frost.
Where it is used
- Agriculture
- Building services
- Water engineering works
Technical data
- Capacity: Up to 200 l/min (12 m³/h)
- Head: Up to 68 m
- Gauge suction height: Up to 7 m
- Liquid temperature: From -10 °C to +90 °C
- Ambient temperature: From -10 °C to +40 °C
- Max pressure in the pump body (bar): 10
- Motor: 2-pole
- IP protection rating: IPX4
- Suction body: Cast iron
- Discharge body: Cast iron
- Impeller: Stainless steel AISI 304
- Shaft: Stainless steel AISI 431
Who it is for
Designed for plumbers, agricultural workers and heating and plumbing engineers.
Related products
- Electric pump UP Pedrollo
- Electric pump TOP Pedrollo
- Ultimate yellow hose — from the category Water Hoses and Layflat Hoses
- 90° MF Angles, art. 92 — from the category Galvanised Pipe Fittings
- One-piece underground tanks, smooth cistern, polyethylene, Rototec — from the category Tanks, Cisterns and Drums for Liquid Storage
- Browse the whole category: Clean Water Pumps
Before you order
In your request, please state the rated load or flow rate and the quantities required, so we can give you the right quotation first time.
For prices and availability, request a quote from AMES Srl: we will reply with our quotation, delivery times and, where needed, an equivalent technical alternative.
Quantity
Specifications 12
| Capacity | Up to 200 l/min (12 m³/h) |
|---|---|
| Head | Up to 68 m |
| Gauge suction height | Up to 7 m |
| Liquid temperature | From -10 °C to +90 °C |
| Ambient temperature | From -10 °C to +40 °C |
| Max pressure in the pump body (bar) | 10 |
| Motor | 2-pole |
| IP protection rating | IPX4 |
| Suction body | Cast iron |
| Discharge body | Cast iron |
| Impeller | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
