All Pedrollo products

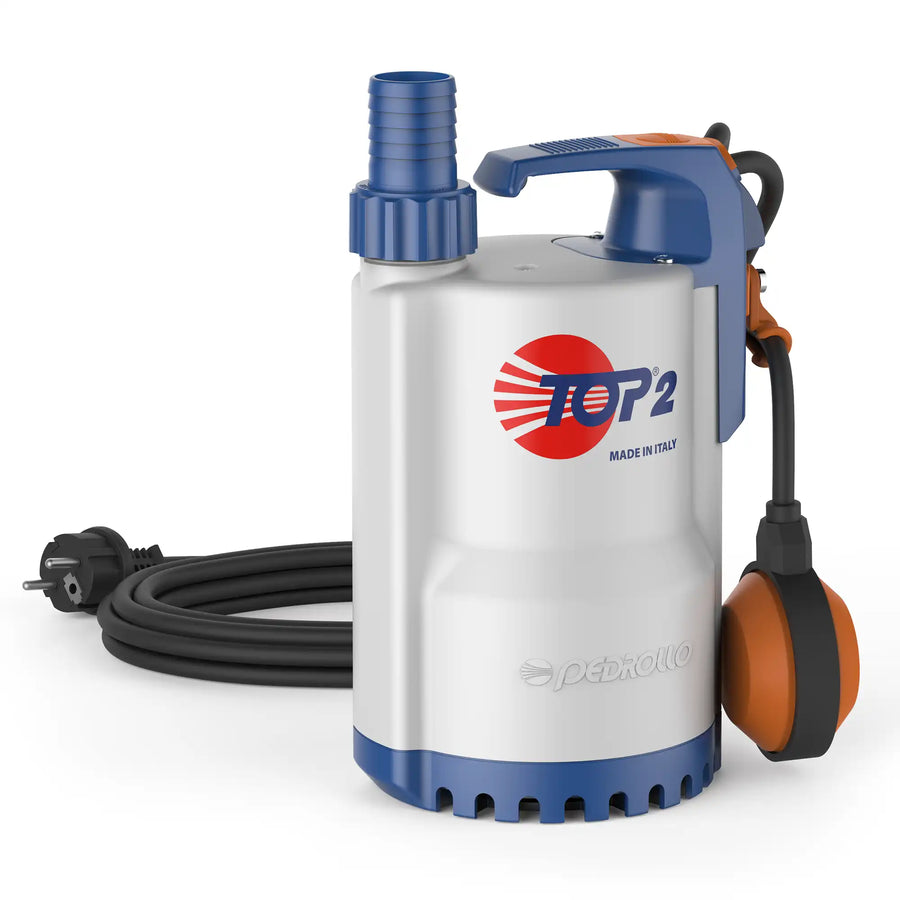

Pedrollo TOP - Submersible Pumps for Wastewater and Drainage
Key specifications
- TipologiaElettropompa
- Codice articoloTOP
- Caudalhasta 360 l/min (21.6 m³/h)
- Alturahasta 15.5 m
- Temperatura del l quidohasta +40 °C (+90 °C para servicio intermitente máximo de 3 minuas)
- Paso de cuerpos s lidoshasta Ø 10 mm
Advantages
- Pedrollo Reliability: renowned brand in the Submersible Pumps for Wastewater and Drainage sector
- Constant performance: tested for professional use
- Compatibility: integrable with the Pedrollo line
- AMES Support: pre and post-sales technical consulting
Applications
The Pedrollo TOP - Submersible Pumps for Wastewater and Drainage tool is intended for professional use in the following contexts:
- Construction sites, infrastructures, and plants
- Workshops, laboratories, and industrial production
- Specialized technical maintenance
- Operators and professionals in the Submersible Pumps for Wastewater and Drainage sector
Standards and Compliance
Reference regulations: CE marking according to EU directives applicable to the Submersible Pumps for Wastewater and Drainage sector, compliance with current technical and safety regulations, technical documentation provided by the manufacturer Pedrollo.
TOP (Pedrollo) — The TOP series is suitable for draining clear water without abrasive particles. The construction solutions adopted ensure ease of use and operational safety thanks to the total cooling of the motor and the double seal on the shaft. They are recommended for emergency dewatering of small flooded areas (rooms, basements, garages), disposal of domestic wastewater (dishwashers, washing machines), emptying collection tanks. Construction features: submersible pumps for wastewater and drainage, stainless steel submersible electric pumps for clear water, submersible electric pumps for dirty water, stainless steel submersible electric pumps for dirty water, submersible electric pumps with grinder for dirty water. Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy
Technical Data
| Feature | Value |
|---|---|
| Flow rate | up to 360 l/min (21.6 m³/h) |
| Head | up to 15.5 m |
| Liquid temperature | up to +40 °C (+90 °C for intermittent service maximum of 3 minutes) |
| Solids passage | up to Ø 10 mm |
| Maximum immersion depth | – up to 3 m for TOP 1-2-3 – up to 5 m for TOP 4-5 |
| Minimum emptying level | – 14 mm for TOP 1-2-3 – 30 mm for TOP 4-5 |
| Motor | 2 poles |
| Protection rating | IP 68 |
| Pump body | Technopolymer |
| Impeller | Noryl™ |
| Motor casing | – AISI 304 Stainless Steel – AISI 316L Stainless Steel (for TOP-LA) |
| Shaft | – AISI 431 Stainless Steel – AISI 316L Stainless Steel (for TOP-LA) |
Main Features
- Construction characteristics
- Submersible pumps for wastewater and drainage
- Stainless steel submersible electric pumps for clear water
- Submersible electric pumps for dirty water
- Stainless steel submersible electric pumps for dirty water
- Submersible electric pumps with grinder for dirty water
- Pedrollo S.p.A Via E. Fermi 7, 37047 San Bonifacio (VR) Italy
Why choose Pedrollo
- Global leader in pumps: Pedrollo S.p.A., Italian excellence in electric pumps for water, recycling and circularity
- Complete range: surface, submerged, submersible pumps, pressure booster sets, control panels and accessories
- Hydraulic quality: excellent hydraulic characteristics, reliability and compactness for domestic, civil, industrial and agricultural use
- Made in Italy: Italian design and production, distribution in over 160 countries
Request a quote from AMES Srl for TOP: we will contact you with the model, hydraulic performance and supply conditions.
Quantity
Products may not be in stock.
Delivery times depend on the manufacturer's speed.
Delivery times depend on the manufacturer's speed.
Specifications
| Tipologia | Elettropompa |
|---|---|
| Codice articolo | TOP |
| Caudal | hasta 360 l/min (21.6 m³/h) |
| Altura | hasta 15.5 m |
| Temperatura del l quido | hasta +40 °C (+90 °C para servicio intermitente máximo de 3 minuas) |
| Paso de cuerpos s lidos | hasta Ø 10 mm |
| M xima profundidad de uso | – hasta 3 m para TOP 1-2-3 – hasta 5 m para TOP 4-5 |
| Nivel m nimo de vaciado | – hasta 14 mm para TOP 1-2-3 – hasta 30 mm para TOP 4-5 |
| Motor | 2 polos |
| Protecci n | IP 68 |
| Cuerpo bomba | Tecnopolímero |
| Rodete | Noryl™ |
| Camisa motor | – Acero inoxidable AISI 304 – Acero inoxidable AISI 316L (para TOP-LA) |
| Eje | – Acero inoxidable AISI 431 – Acero inoxidable AISI 316L (para TOP-LA) |
